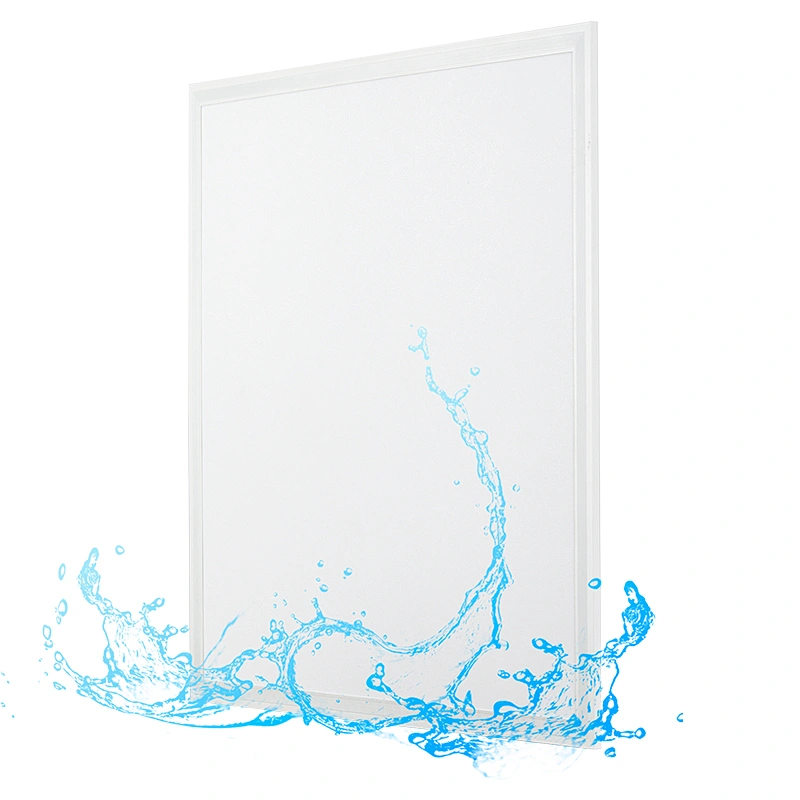

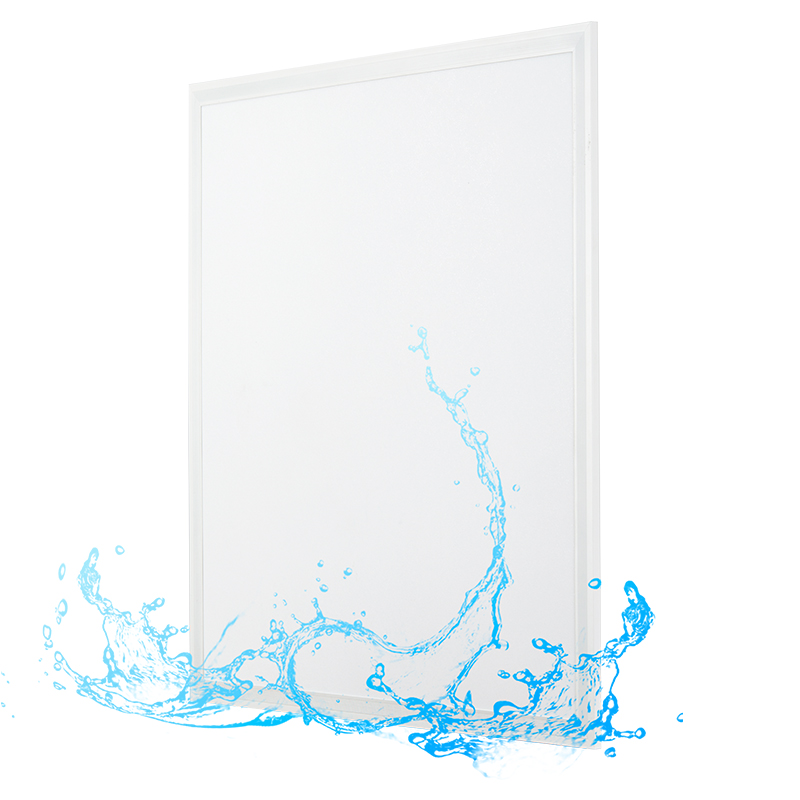

Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution
Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution

Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution

Model NO.
SPL129
Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution
Quantity:
Product features
· Thickness 34mm
· Waterproof IP65
· Lumen efficiency up to l50lm/W
· Isolated solution
Overview
Product Range: LED panel
Application: Retail, offices, schools, corridors, hospitality
Material: Iron Base+ Aluminum Frame+ PS diffuser
Light Source: LED SMD
Driver: Lifud/Boke driver for option
Electrical Class: Class I
Mounting: Recessed
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 40W
Dimmension(D*H): 595*595/620*620*34MM
Lumen Output: 4000LM
Lumens Per Circuit Watt: 100lm/W, up to 150lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: F
LED Life (Hours): 50000 Hours
