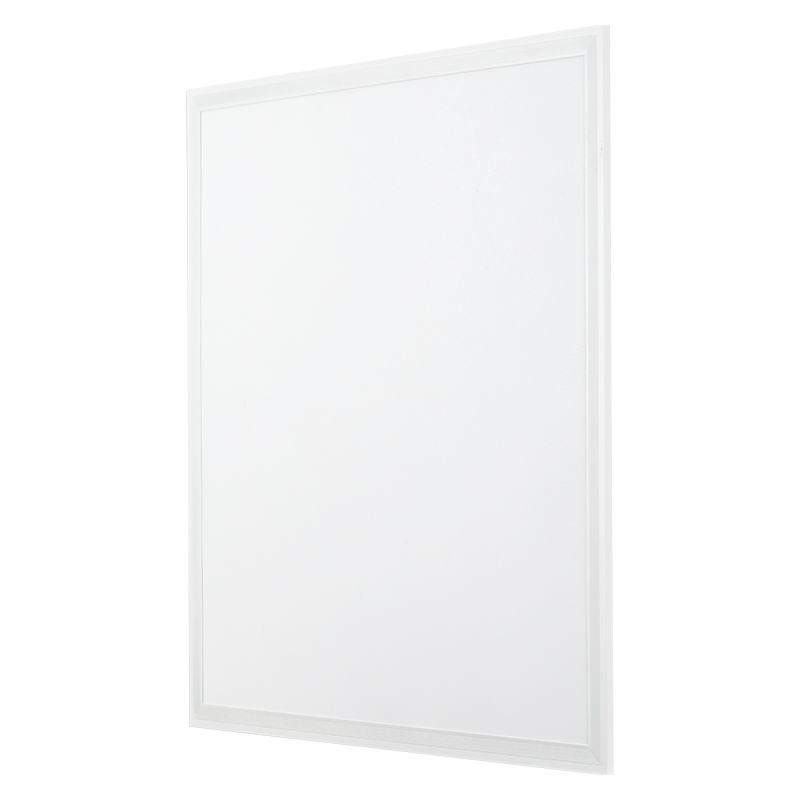

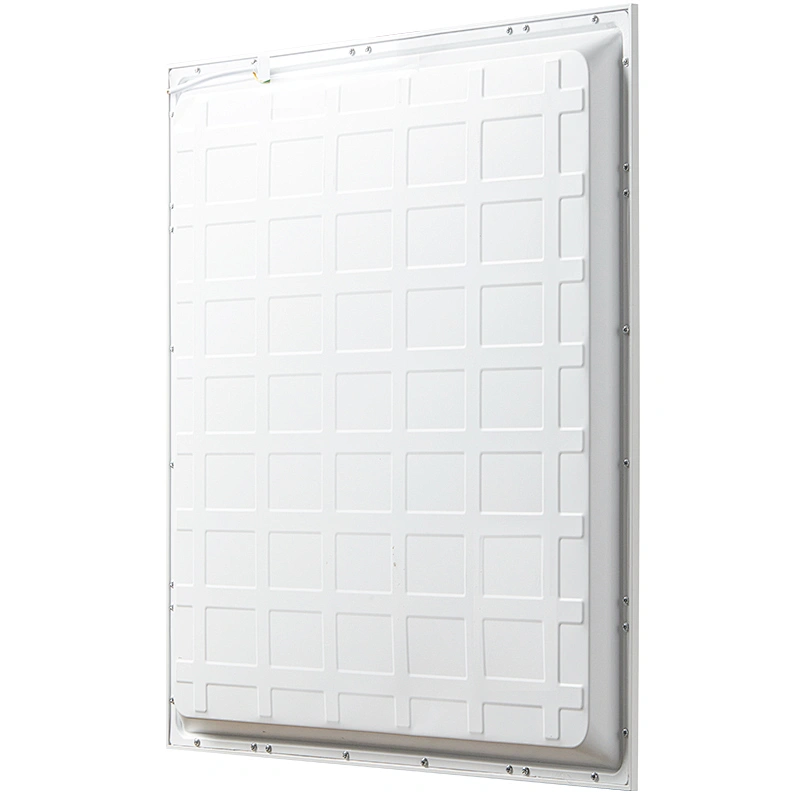

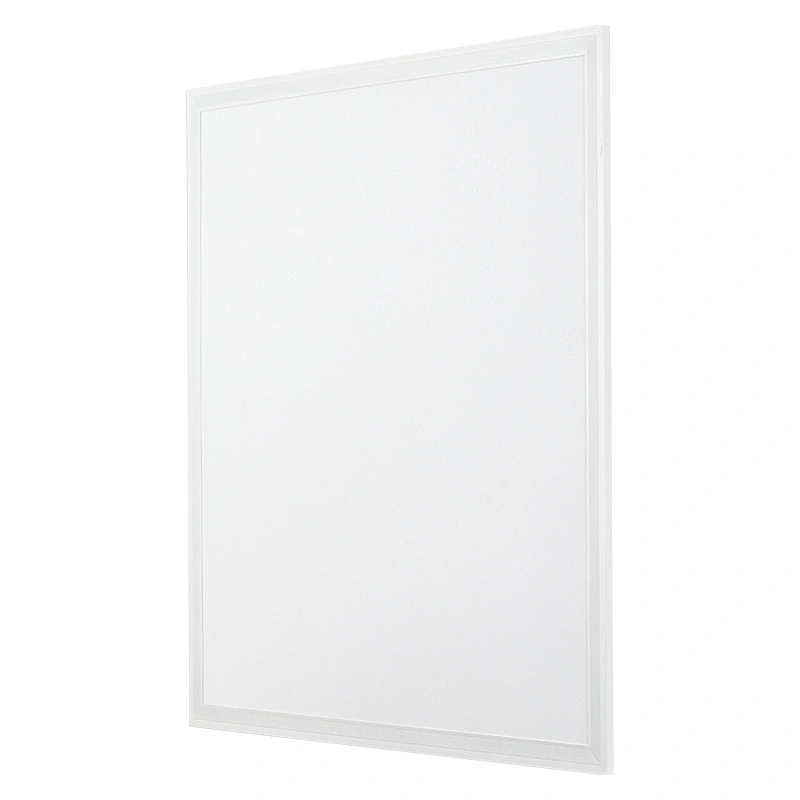

LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution

LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution

Model NO.
SPL128
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
Quantity:
Product features
· Thickness 25mm
· Clean design
· Isolated solution
· TP(a) & TP(b) diffuser available
Overview
Product Range: LED panel
Application: Retail, offices, schools, corridors, hospitality
Material: Iron Base+ Aluminum Frame+ PS diffuser
Light Source: LED SMD
Driver: Lifud Integral driver
Optional function: CCT selectable, Dimmable, UGR
Electrical Class: Class I
Mounting: Recessed
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 40W
Dimmension(D*H): 595*595/620*620/295*1195*25MM
Lumen Output: 4000LM
Lumens Per Circuit Watt: 100lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: F
LED Life (Hours): 50000 Hours
