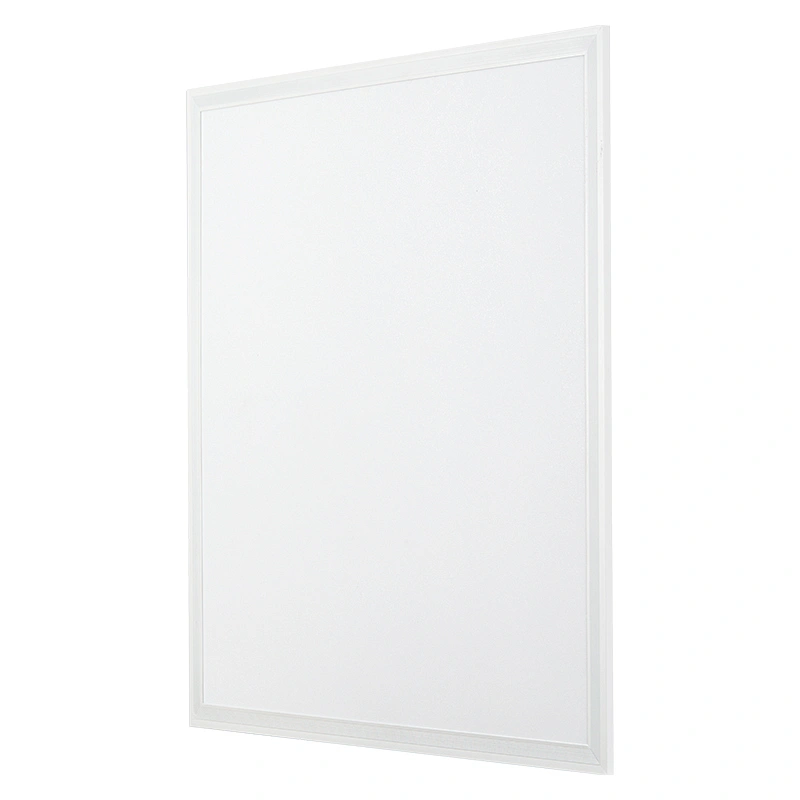

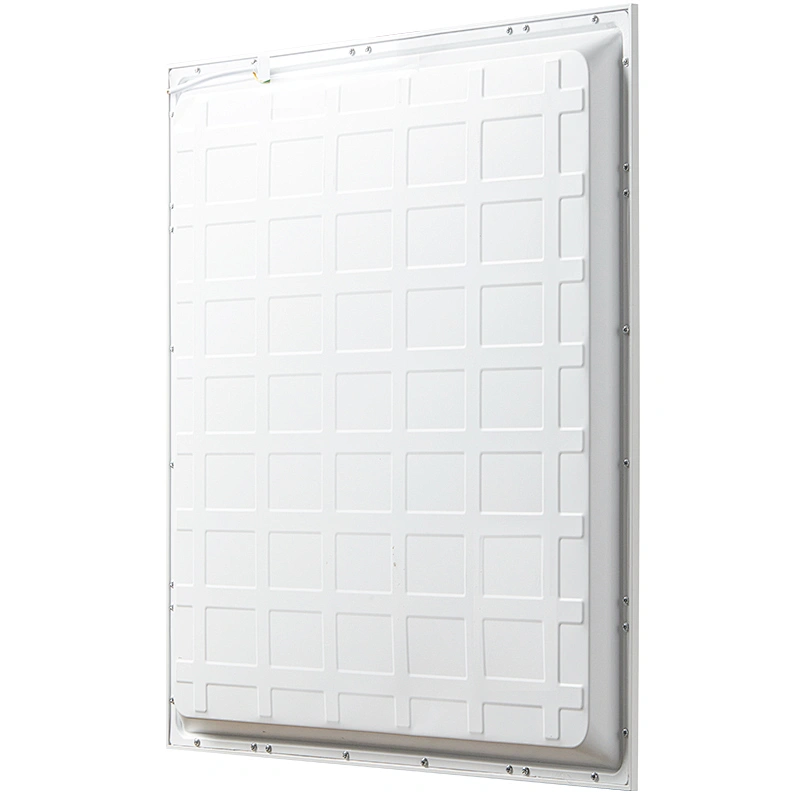

LED Panel, Thickness 28mm, Integral slim driver
LED Panel, Thickness 28mm, Integral slim driver
LED Panel, Thickness 28mm, Integral slim driver
LED Panel, Thickness 28mm, Integral slim driver
LED Panel, Thickness 28mm, Integral slim driver

LED Panel, Thickness 28mm, Integral slim driver

Model NO.
SPL127
LED Panel, Thickness 28mm, Integral slim driver
Quantity:
Product features
· Integral slim driver
· Thickness 28mm
· Clean design
Overview
Product Range: LED panel
Application: Retail, offices, schools, corridors, hospitality
Material: Aluminum Frame+ PS diffuser
Light Source: LED SMD
Driver: Integral driver
Electrical Class: Class I
Mounting: Recessed
Warranty: 3 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 40W
Dimmension(D*H): 595*595/620*620/295*1195*28MM
Lumen Output: 4000LM
Lumens Per Circuit Watt: 100lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: F
LED Life (Hours): 30000 Hours

Send Message

*
*
* clear input
* clear input
* clear input

Related Products

LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
LED Panel, Thickness 25mm, TP(a) & TP(b) diffuser available, Isolated solution
Model NO. SPL128
LED Backlit Panel, TP(a) & TP(b), UGR<19
LED Backlit Panel, TP(a) & TP(b), UGR<19
Model NO. SPL117

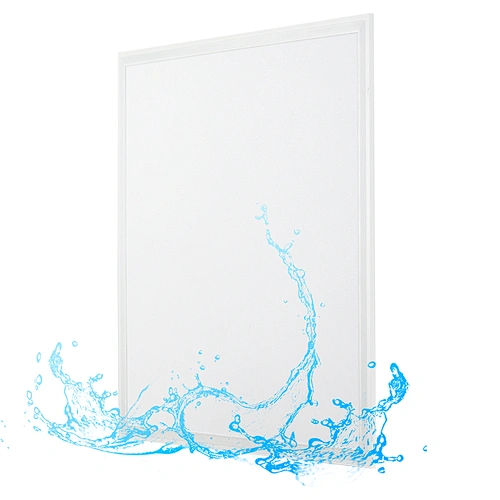

Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution
Waterproof IP65 LED Panel, Thickness 34mm, Lumen efficiency up to l 50lm/W Isolated solution
Model NO. SPL129

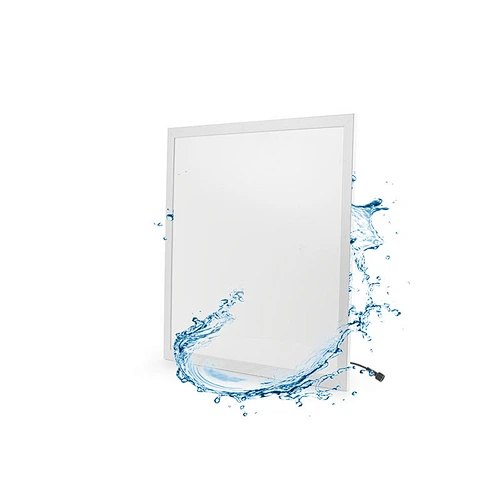

IP65 Panel light
