Model NO.
SPL117
LED Backlit Panel, TP(a) & TP(b), UGR<19
Quantity:

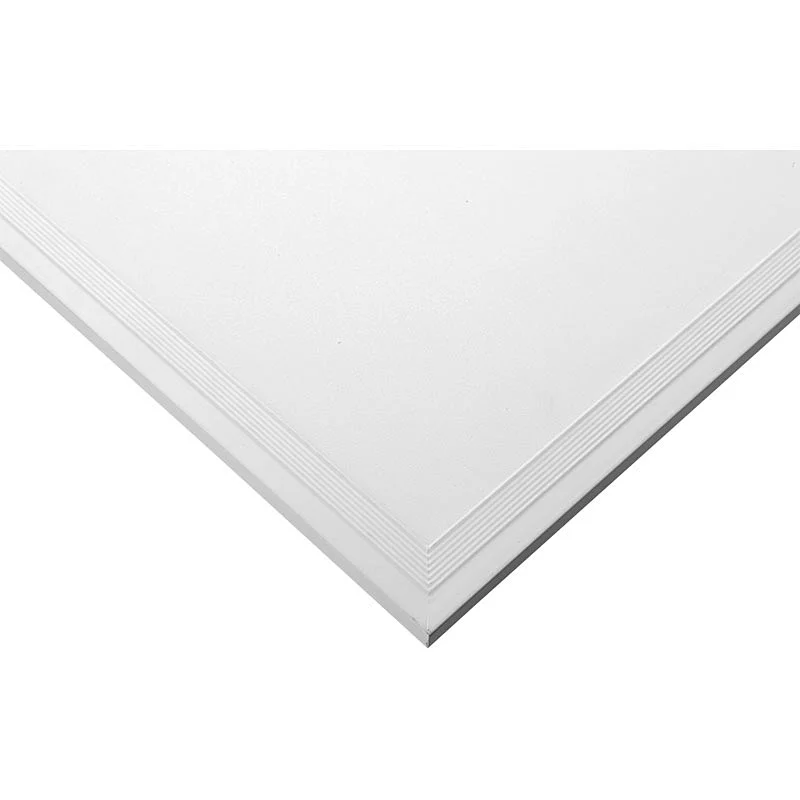

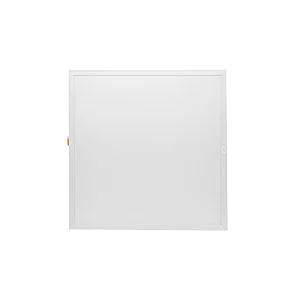

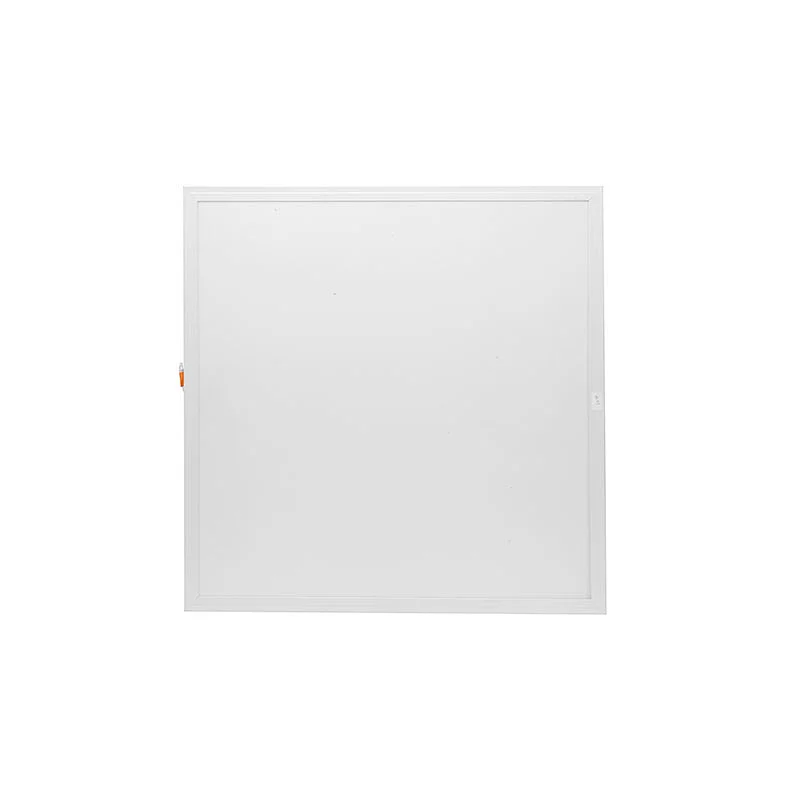

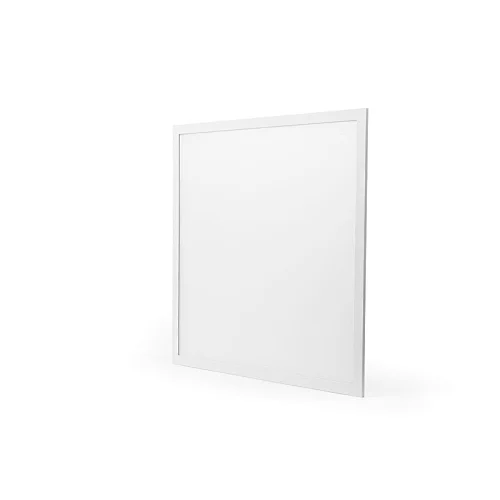

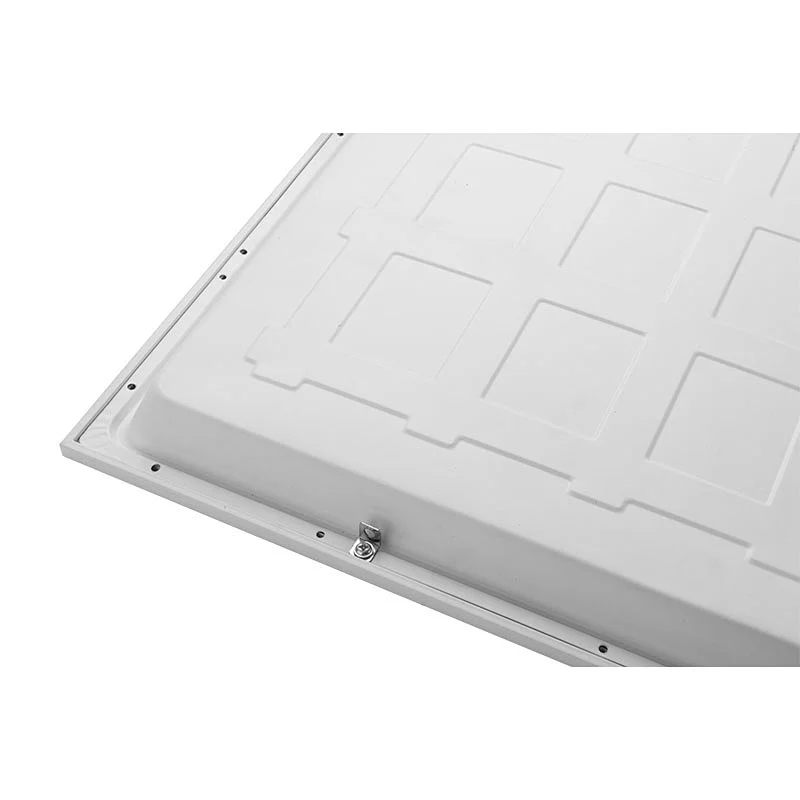

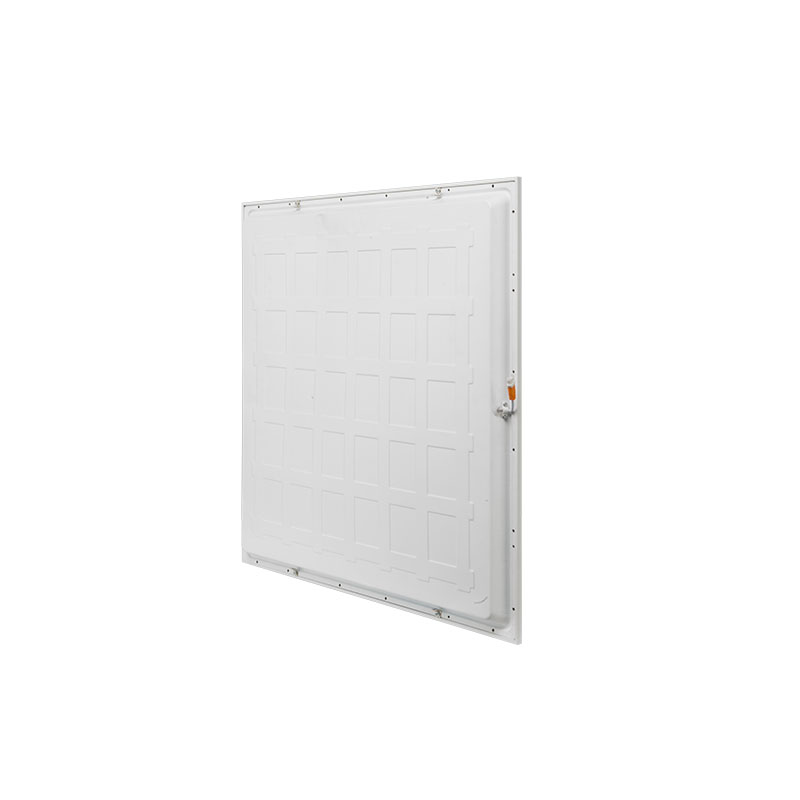

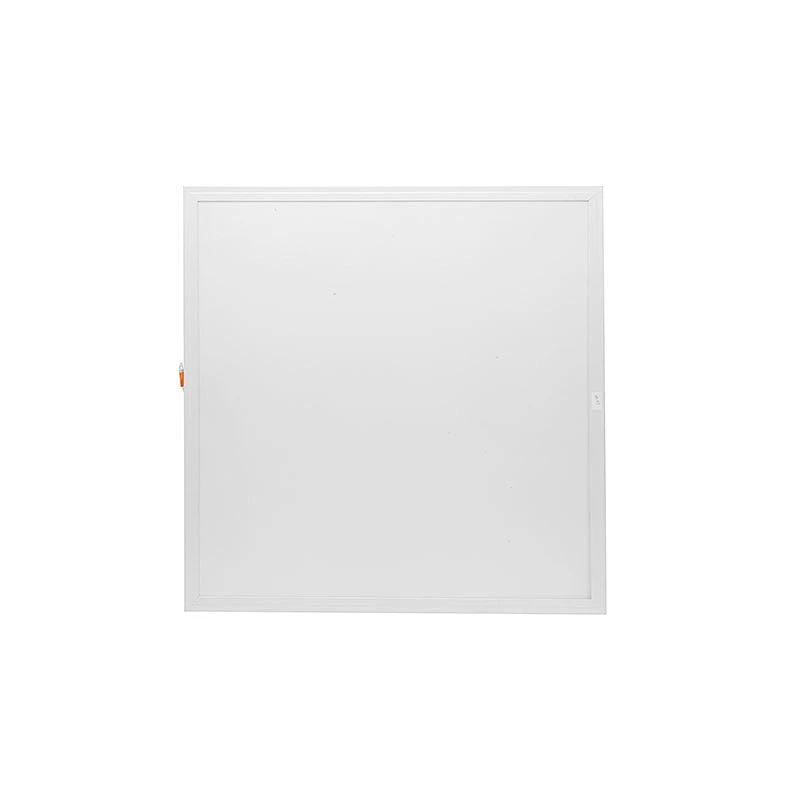

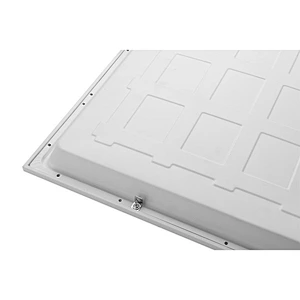

This is a type of Led Backlit Panel Light with Led Backlit Wall Panels and Tpb Led Panel. This Led Backlit Panel Light​​​​​​​ is easy to install in the wall. The white color can be suitable for all kinds of walls.

​​​​​The LED panel lamp mainly adopts a unique optical design. The light passes through the light guide plate to form a uniform plane luminous effect, no dark area, and the light effect is > 60lm / W.

With high-quality constant current driving power supply, conversion efficiency of more than 95%, low power consumption, higher light efficiency.

Pure aluminum outer frame, bright silver treatment, good heat dissipation, remote sensing control of all panel lights to produce a magic color effect, touch sensing control of RGB panel lights, infrared control of RGB panel lights.

Welcome to wholesale bulk high-quality and beautiful Led Backlit Panel Lights from Sense manufacturer in China.
Product Features

  • White finish aluminium frame and opal diffuser

  • Available in 3 sizes: 295x595, 595x595 and 295x1195mm

Overview

Product Range: LED panel light

Application: Offices, industrial, commercial, residential

Housing:Extruded aluminium profile with white powder coated finish

Diffuser:High efficiency low glare opal diffuser

Light Source: LED SMD

Driver:Remoted driver with flex and plug option

Electrical Class: Class I

Mounting: Recessed/Ceiling grids/Surface Mounted/Suspending

Optional Function:Dimmable

Warranty: 3 Years

Certificates:CE/EMC/SAA/ROHS

Performance

Voltage Rating(V):220-240V

Operating Frequency (Hz):50/60Hz

Wattage Rating:36W/40W

Dimension(L*W*H):595*595*30MM

Lumen Output:2500/3200LM

Lumens Per Circuit Watt:80lm/W

Correlated Color Temperature:3000K/4000K/6500K

Color Rendering Index: >80

Power Factor:>0.9

SDCM:<6

Beam Angle:120°

IP Rating:IP20

Energy Rating:A++

LED Life (Hours):30,000

The points that you should wholesale led backlit panel lights from Sense manufacturer in China.
1. High efficiency and energy saving: high brightness, light conductivity above 90%
2. Green environmental protection: no infrared ray, no ultraviolet ray, no thermal effect, and no harmful and toxic substances.
3. Bright and uniform: bright light is output in full plane, and the luminous angle is wider
4. Ultra thin and ultra light: professional structure and appearance design, ultra-thin and beautiful
5. Stability and durability: 50000 hours of super long service life, 50 times that of incandescent lamps and 10 times that of energy-saving lamps, greatly saving maintenance and replacement costs.
