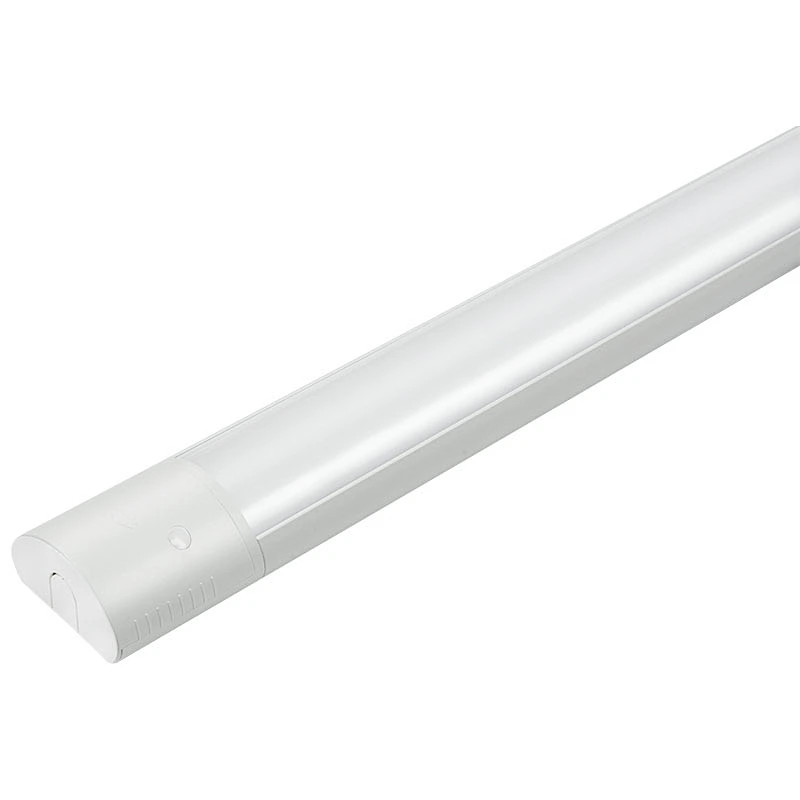

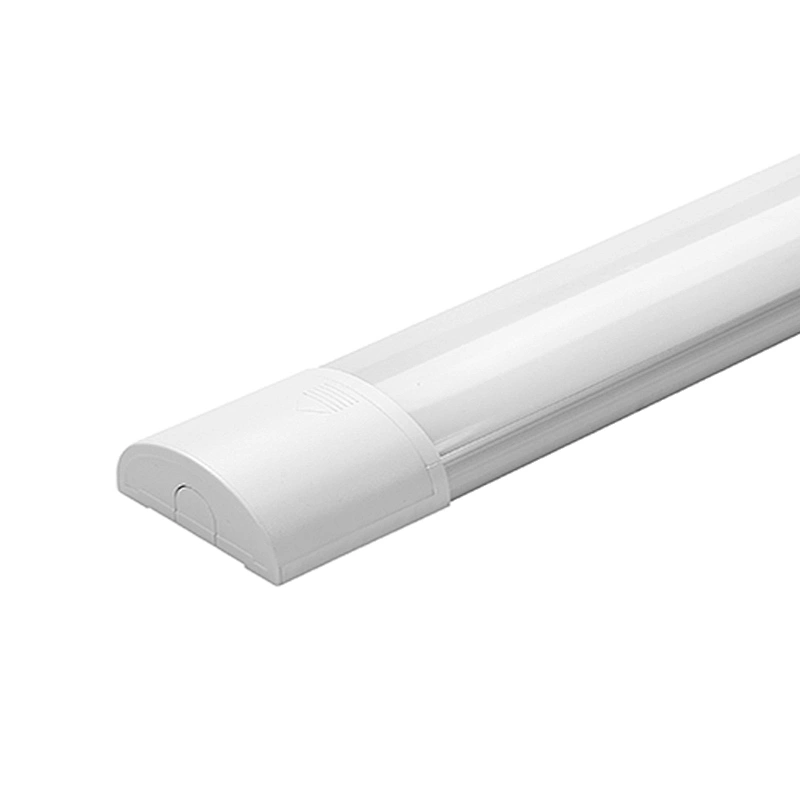

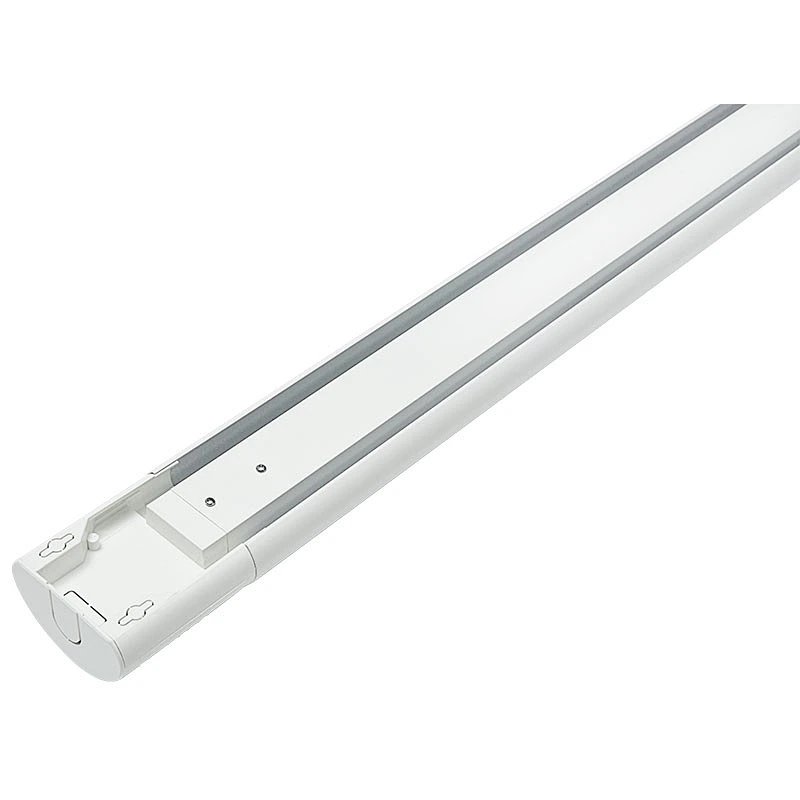

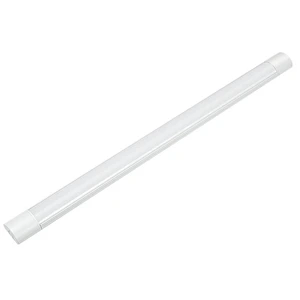

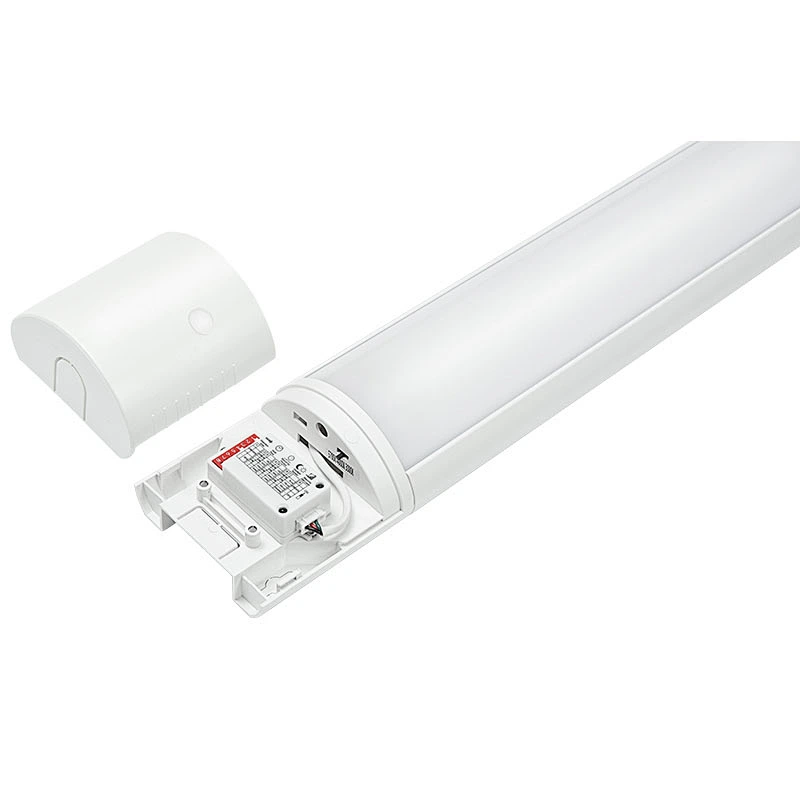

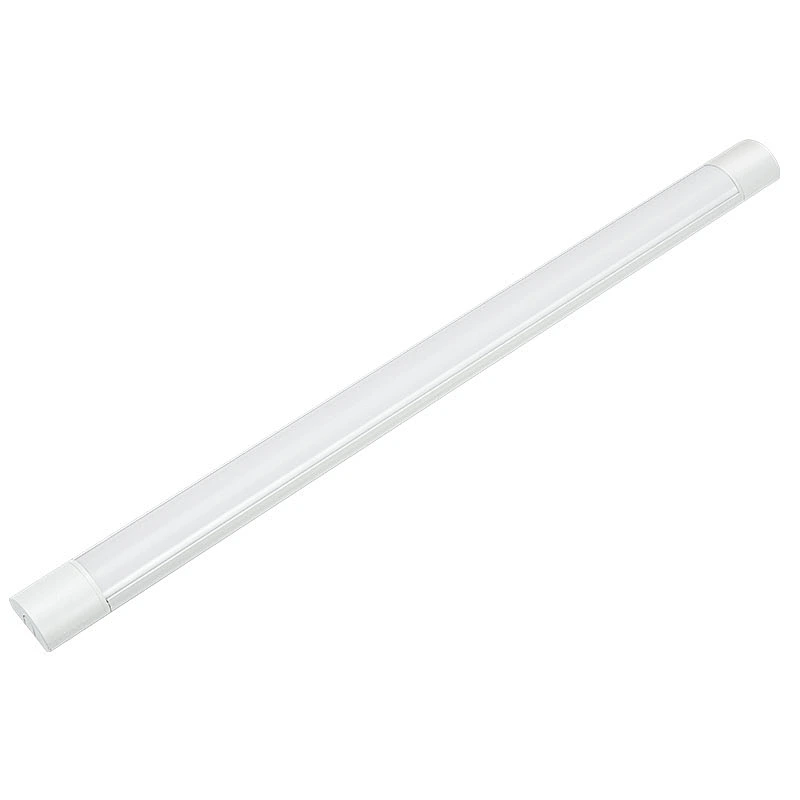

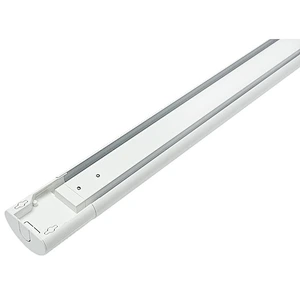

IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation

IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation

Model NO.
SOF148-UK
Delivery
FOB
IP20 Batten, Linkable, Terminal Block Included For Quick And Easy Installation
Quantity:
Product Features
· Aluminium body, polycarbonate diffuser
· Smooth even light distribution
· Multiple variations available
Overview
Product Range: IP20 Batten,Linear lighting
Application: Retail, offices, schools, corridors, workshops
Material: Aluminium body, polycarbonate diffuser
Light Source: LED SMD
Driver: Self-developed driver
Electrical Class: Class I, requires earth
Mounting: Surface Mounted/Suspending
Optional Function: CCT selectable, Emergency, Power selectable, Triac dimming
Warranty: 3 Years
Certificates: CE/EMC/UKCA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 20W/40W/50W
Dimension(L*W*H): 600/1200/1500*80*45MM
Lumen Output: 1800LM/3600LM/4500LM
Lumens Per Circuit Watt: 90lm/W, up to 140lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
Power Factor: >0.9
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: F
LED Life (Hours): 30,000 Hours
