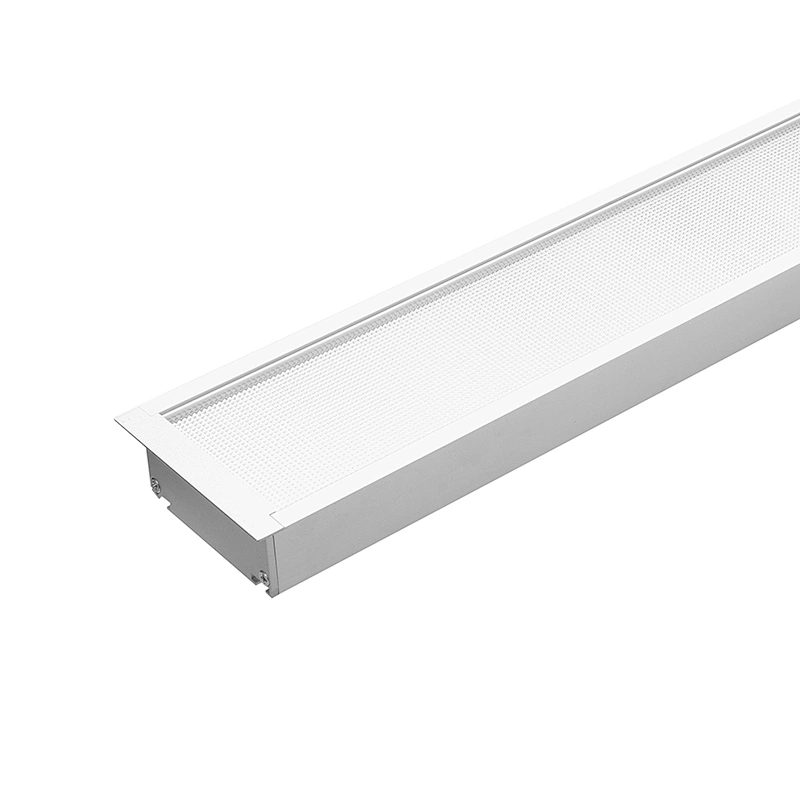

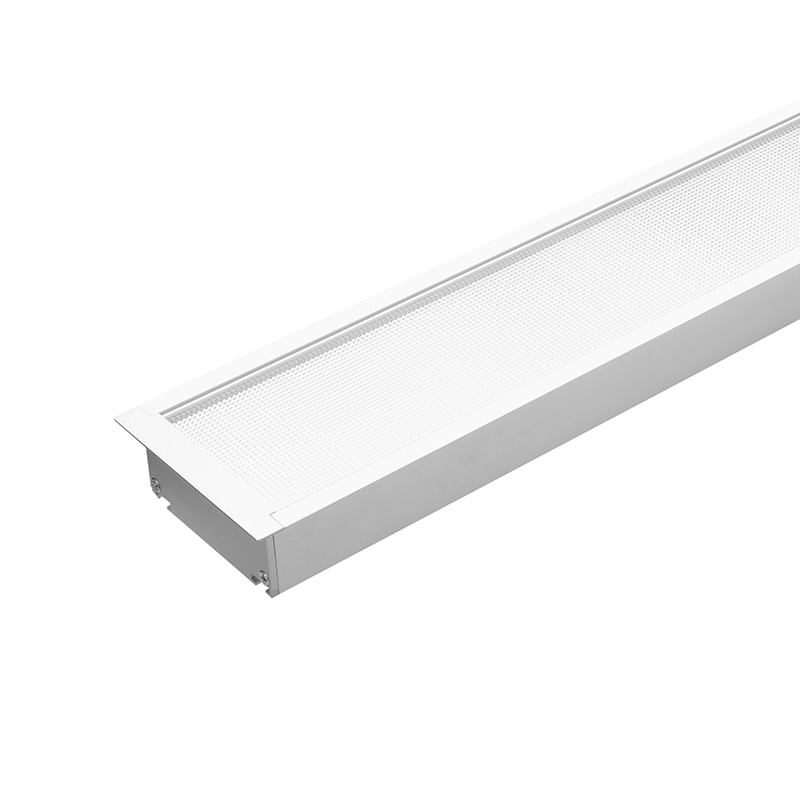

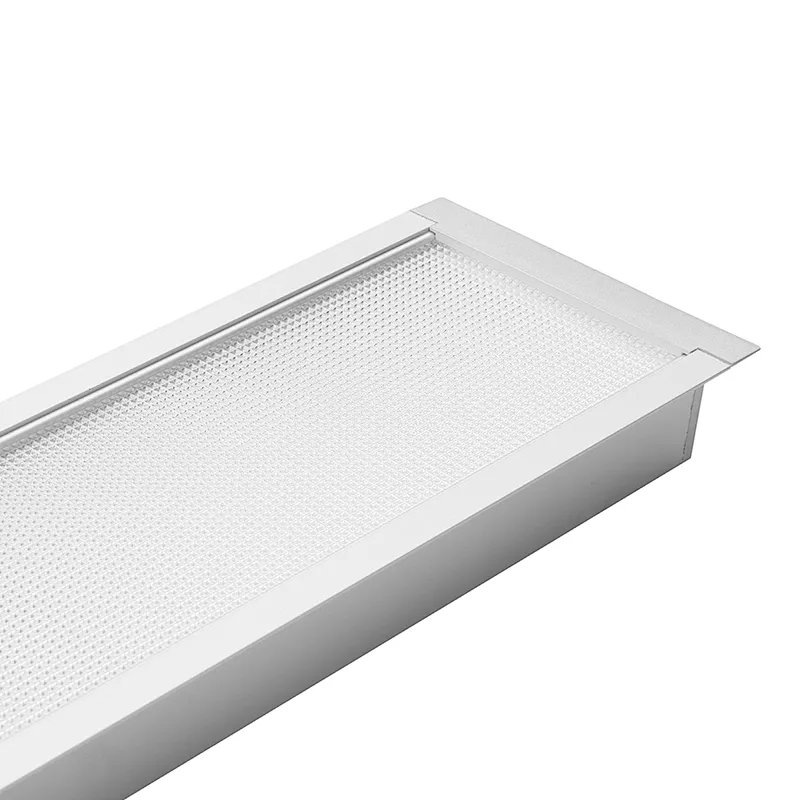

Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,
Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,
Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,
Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,
Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,

Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,

Model NO.
SOF154
Delivery
FOB
Recessed LED Linear Light, High Efficiency Lighting, 130lm/W,
Quantity:
Product Features
· Opal & micro-prism diffusers for your option
· Recessed mounting
· High lumen efficiency, up to 130lm/W
Overview
Product Range: IP20, Linear lighting
Application: Retail, offices, schools, corridors, workshops
Housing:High quality Aluminium with white/grey/black finishes
Diffuser: opal, micro-prism, reflector diffuser
Light Source: LED SMD
Electrical Class: Class I
Mounting: Surface Mounted/Suspending
Optional Function:  Emergency,Triac dimmable, Power selectable, CCT selectable
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 24W/40W/50W/80W
Dimension(L*W*H): 600/1200/1500/3000*90*65MM
Lumen Output: 2400LM/4000LM/5000LM/8000LM
Lumens Per Circuit Watt: 100lm/W, up to 130lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
Power Factor: >0.9
SDCM:<6
Beam Angle:75°
IP Rating: IP20
Energy Rating: F
LED Life (Hours): 50,000 Hours
