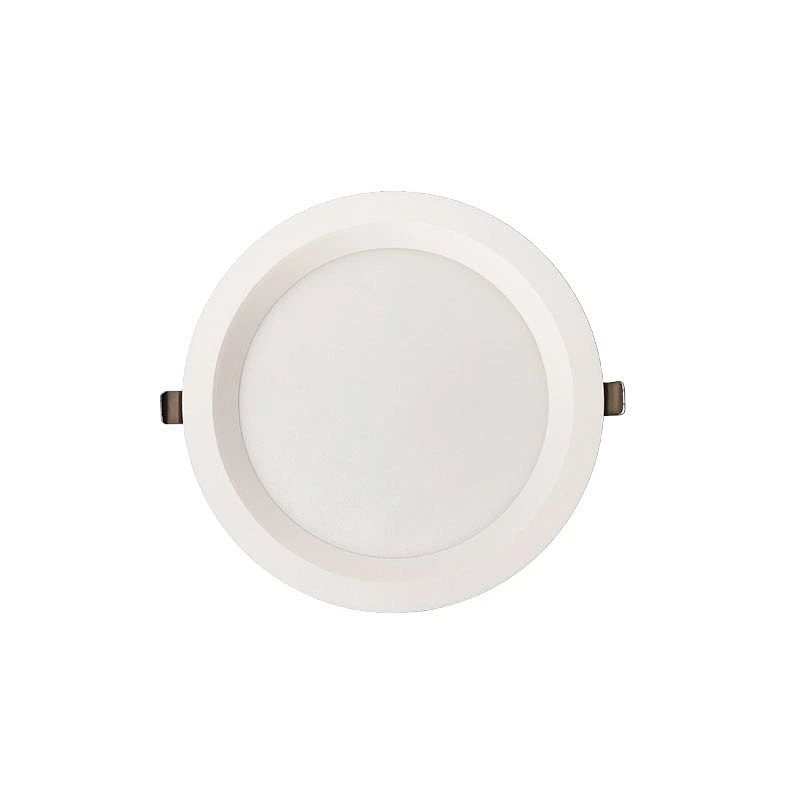

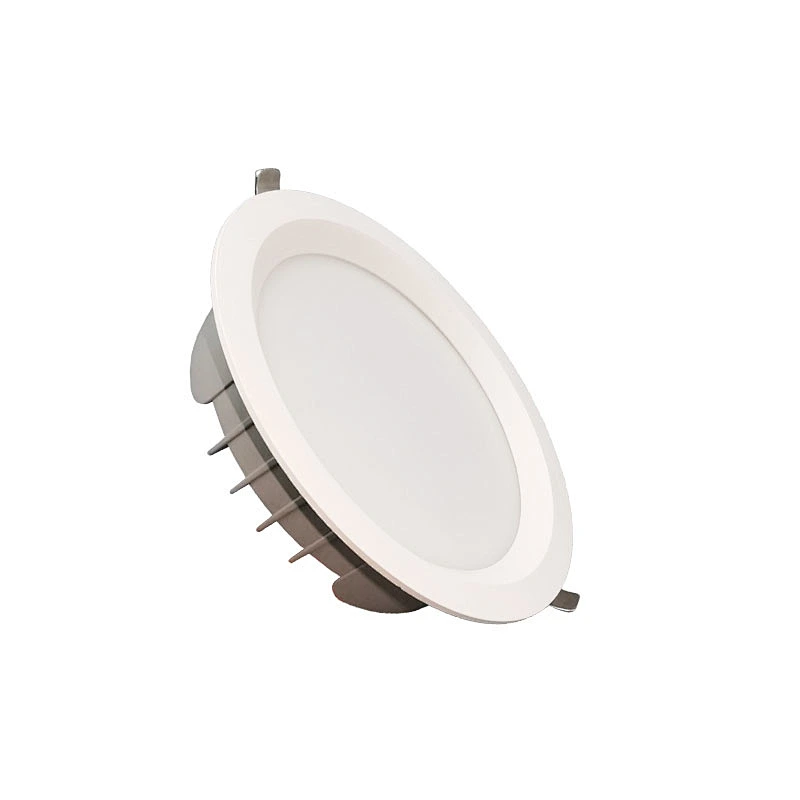

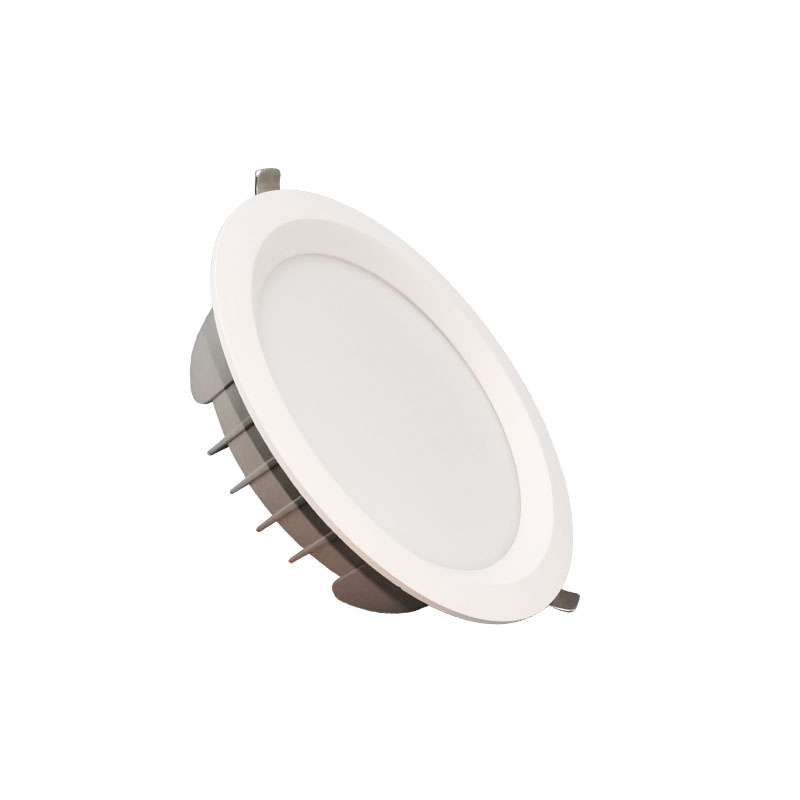

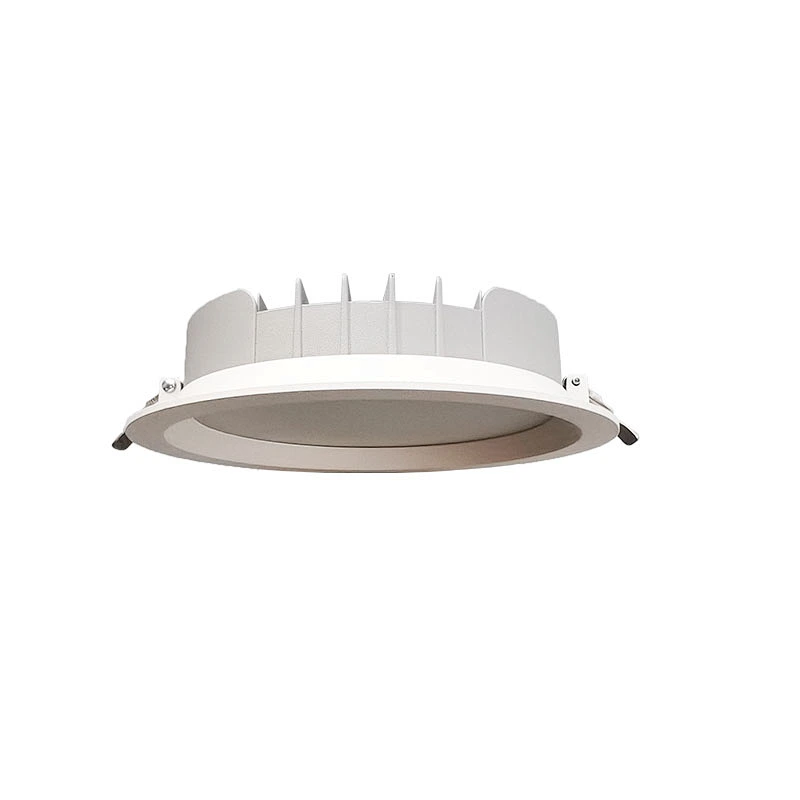

Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight
Slim die-casting aluminum downlight

Slim die-casting aluminum downlight

Model NO.
SCL318
Slim die-casting aluminum housing, 8-40W full ranges downlight with CCT3 selectable.
Triac dimmable, IC-4 rating with IP44 rated from front face
Quantity:
Product Features
Recessed downlight
Slim die-casting aluminum housing
IP44 rated from front face
CCT3  selectable by DIP switch on the back
Triac dimmable
Multi power selectable

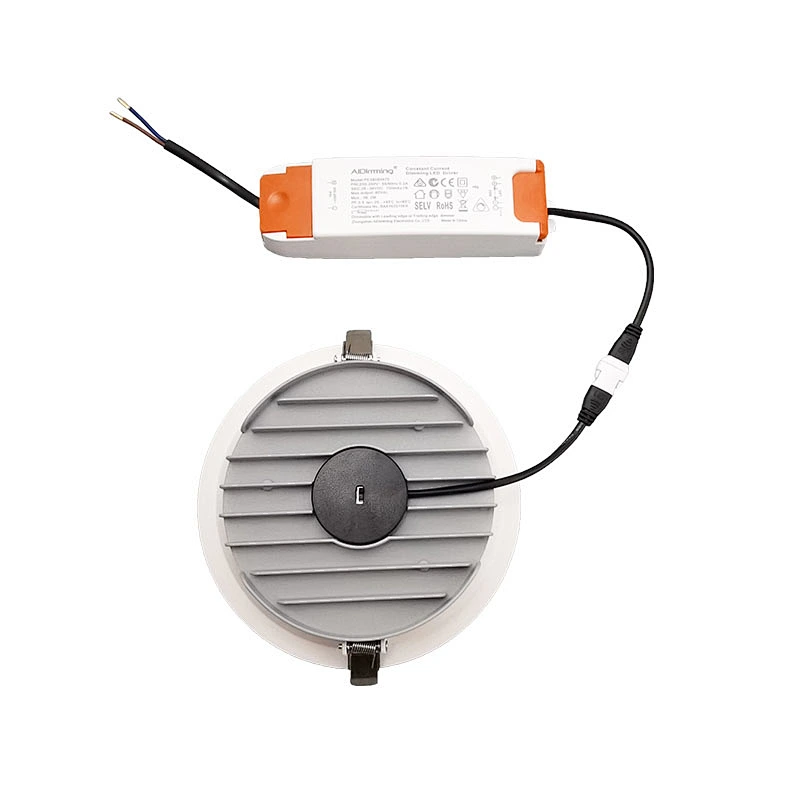

Flicker free remote driver

Overview
Product Range: LED downlight, recessed
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: Aluminum base+PS diffuser
Light Source: LED SMD
Driver: remote driver
Flex & Plug: With 0.6M _x005f_x005f_x005f_x001e_ex & plug
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 3Years
Certificates: CE/EMC/SAA/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 8-40W
Dimmension(D*H): From Ø85*36MM to Ø215*41MM
Cut-out Size: 70-200MM
Lumen Output: 960-4800LM
Lumens Per Circuit Watt: 120LM/W
Correlated Color Temperature: CCT3 selectable 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP44
IC rating: IC-4
LED Life (Hours): 30,000h
