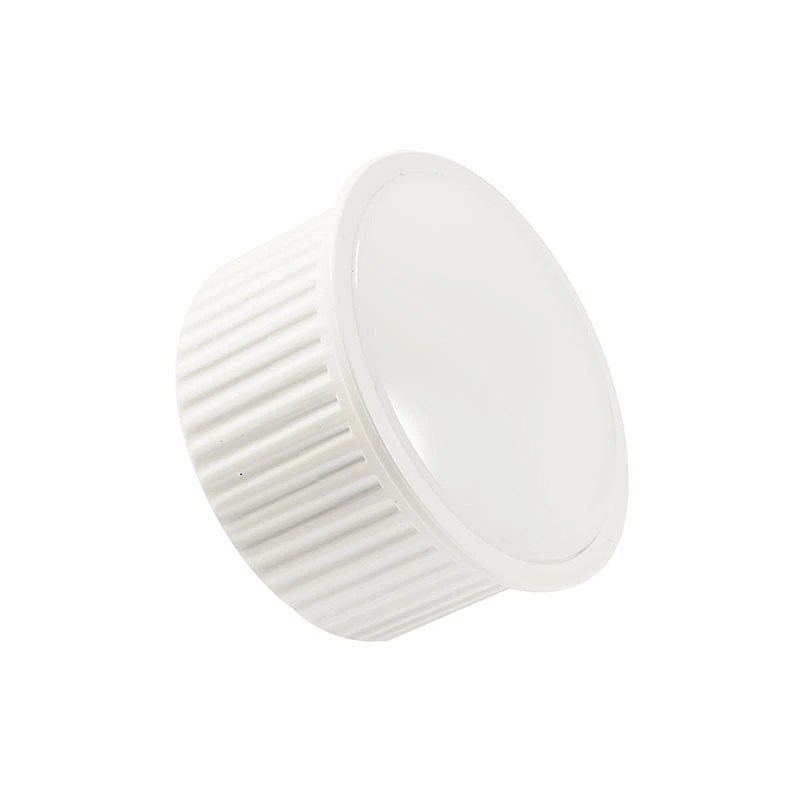

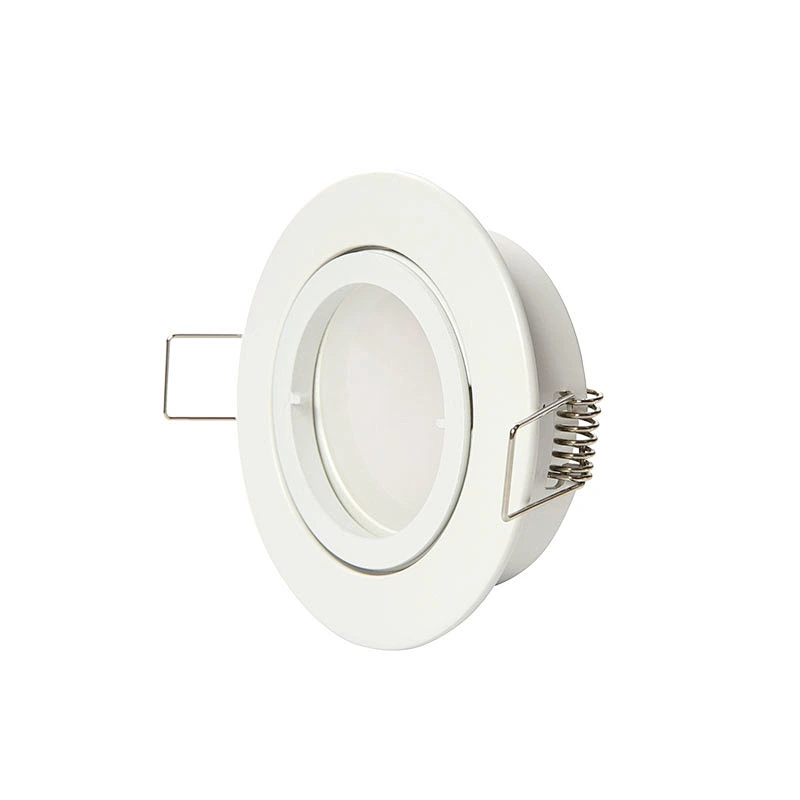

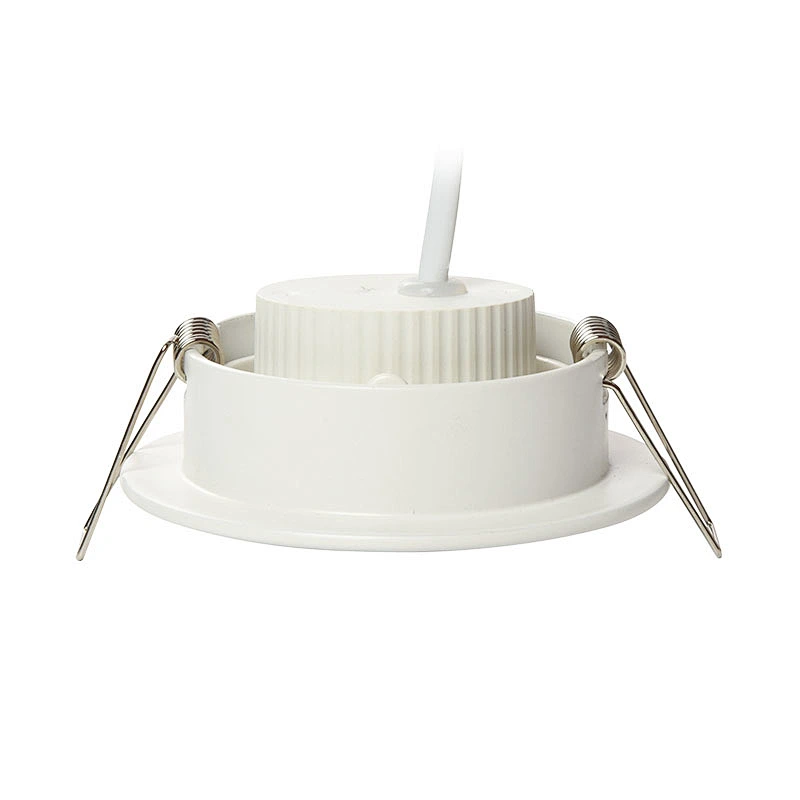

5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module
5W cearamic LED Module

5W cearamic LED Module

Model NO.
SCL111
5W plastic LED Module
3CCT changeable
3-step dimmabel and triac dimmabel available
Quantity:
Product Features
5W plastic LED Module
3CCT changeable with low installation depth
Replacement for convenstional 50mm bulbs
3-step dimmable, triac dimmable

Overview
Product Range: LED downlight, recessed, Fire-rated
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: PA+PC housing, PC diffuser
Light Source: LED SMD
Driver: Built-in driver
Flex & Plug: NA
Electrical Class: Class Ⅱ
Optional Function: Interchangeable bezel available
Mounting: Recessed
Warranty: 3 Years
Certificates: CE/EMC/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 5W
Dimmension(D*H): Ø50*25MM
Cut-out Size: NA
Lumen Output: 400LM
Lumens Per Circuit Watt: 80LM/W
Correlated Color Temperature:  CCT3 selectable 3000K/4000K/6500K
Color Rendering Index: >80
SDCM: ＜6
IP Rating: IP44 from front face
LED Life (Hours): 300,000h
