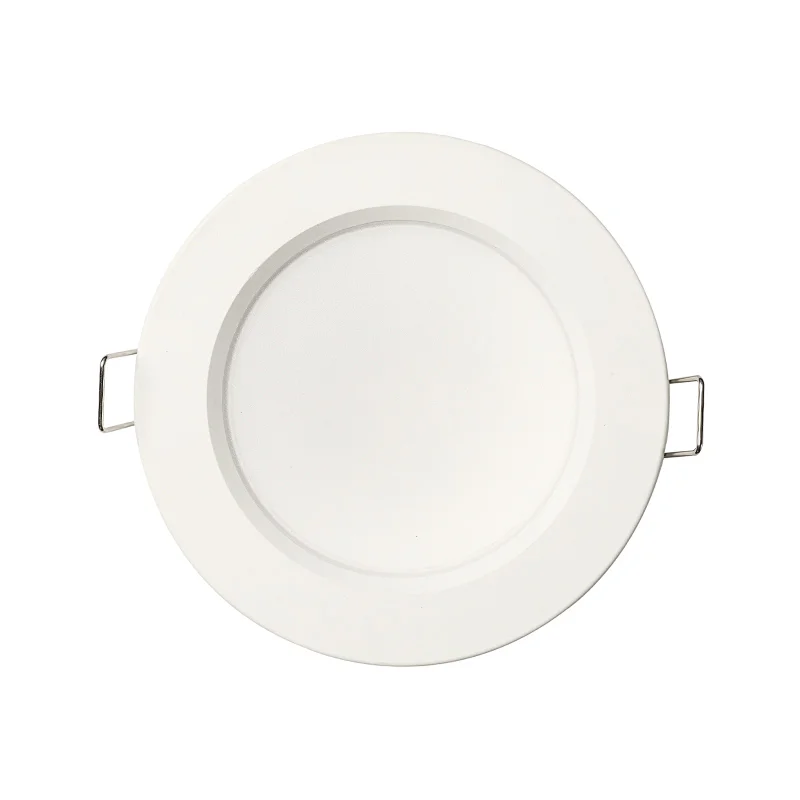

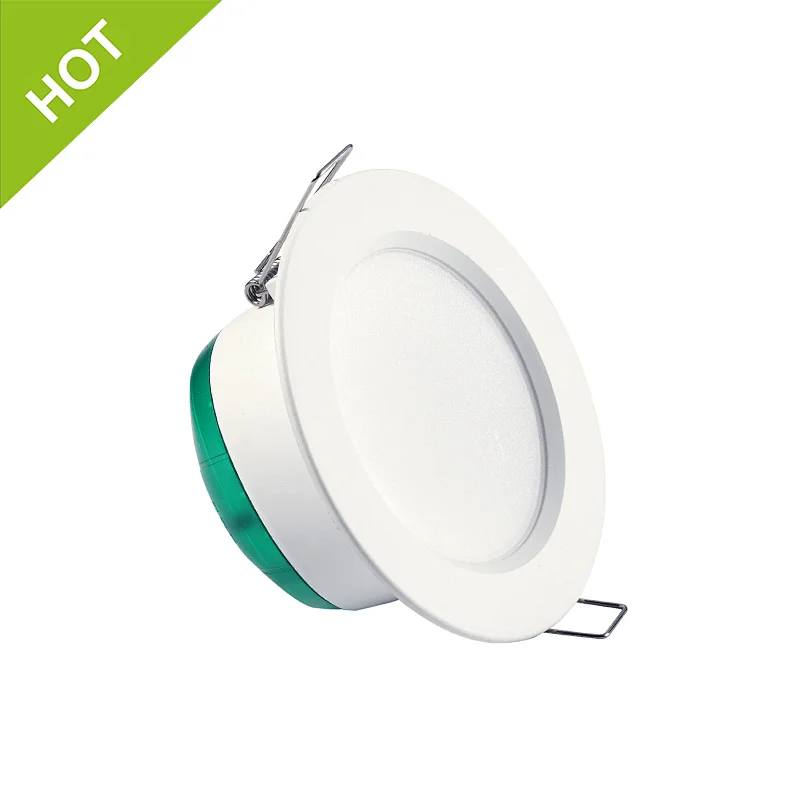

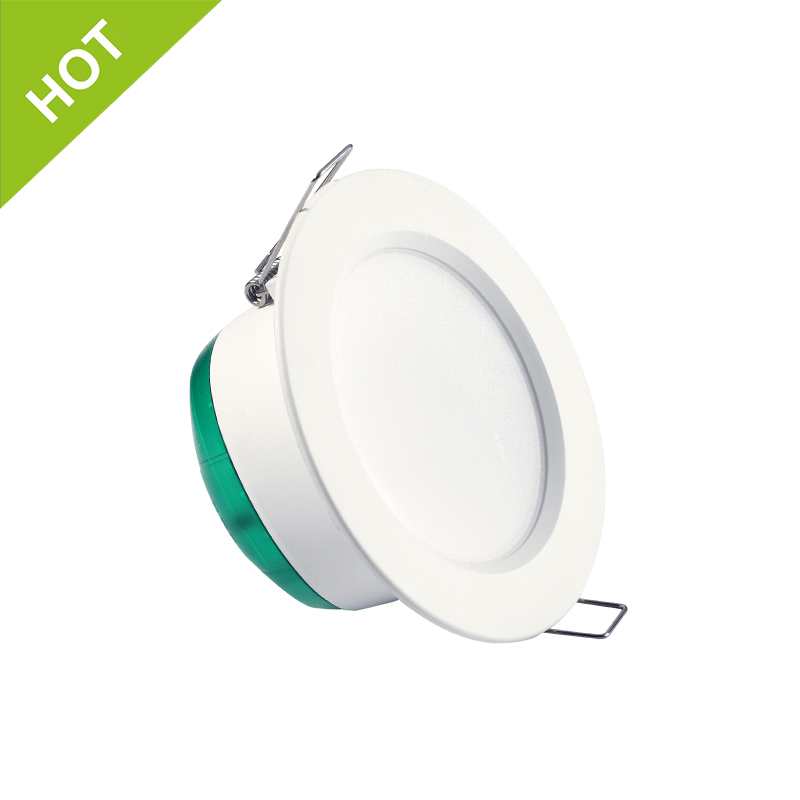

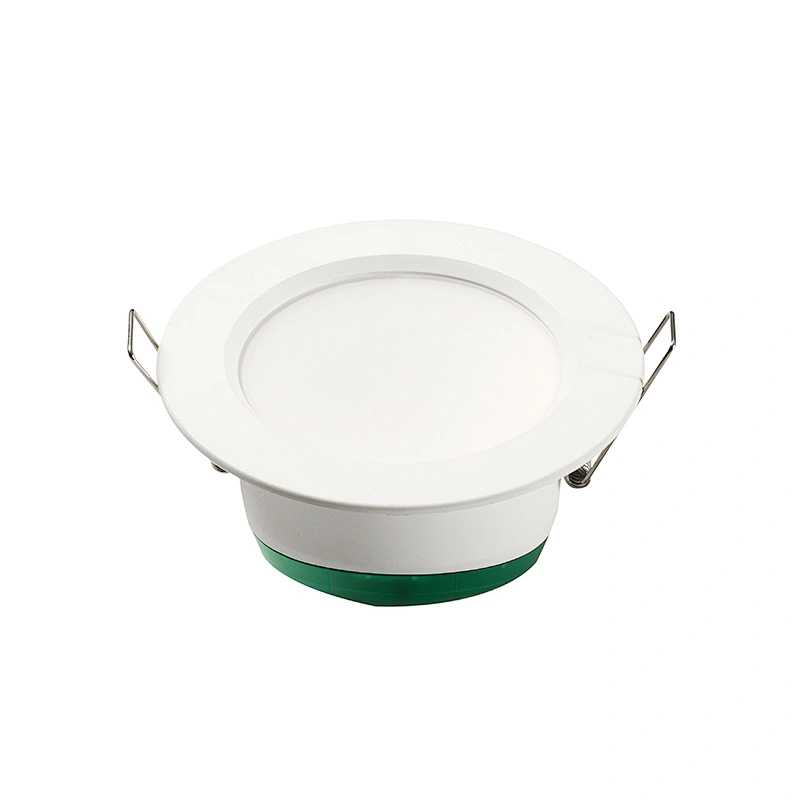

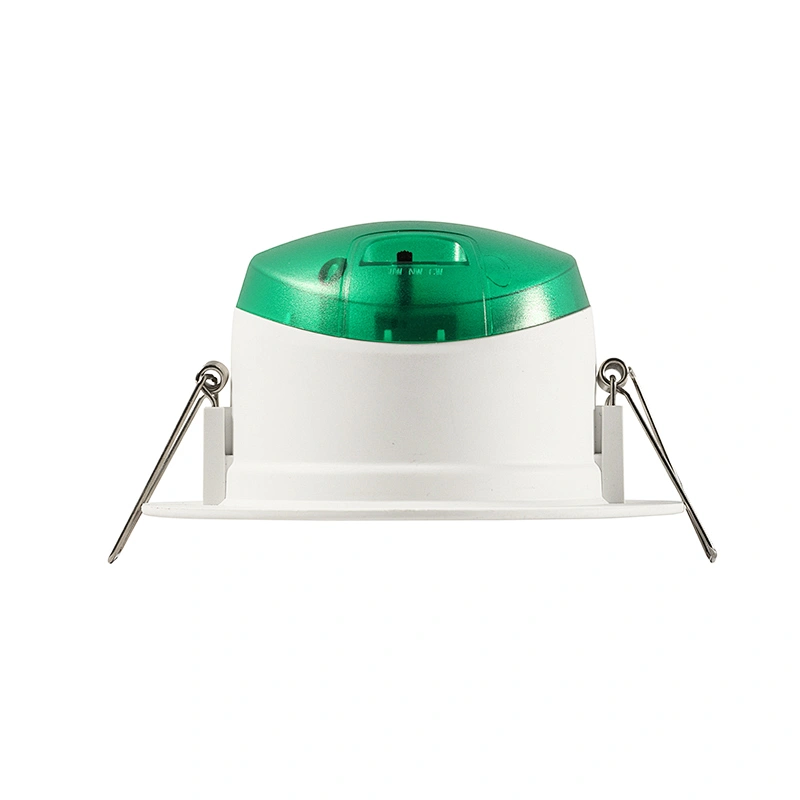

90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug

90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug

Model NO.
SCL292
Minimum order quantity:
1
90mm CCT3,CCT4,CCT5 Dimmable downlight IC-4 IP44 ,with flex and plug
Quantity:

Product Features
Exclusive and classical design with internal driver
High quality PBT housing, PC diffuser with even light output
DIP switch for CCT changeable
Excellent dimming function
TuyaSmart control available
IC-4
IP44 from the front face
Shallow trim
Overview
Product Range: LED downlight, recessed
Application: Office,residential, retail, hospitality etc
Housing: High quality PBT material with white coated
Light Source: LED SMD
Driver: Integral built-in driver
Flex & Plug: 0.6M 2*0.75mm2 SAA flex and plug
Electrical Class: Class II
Optional Function: Dimmable, CCT changeable, Wifi control, Bluetooth control, Tuya Smart
Mounting: Recessed
Warranty: 2 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 8W
Dimmension(D*H): Ø108*60MM
Cut-out Size: 90MM
Lumen Output: 720LM
Lumens Per Circuit Watt: 90lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP44
IC Rating: IC-4
Energy Rating: A+
LED Life (Hours): 25,000

Ideal for any residential or commercial interior space
Residential, offices, hospitality, general applications
