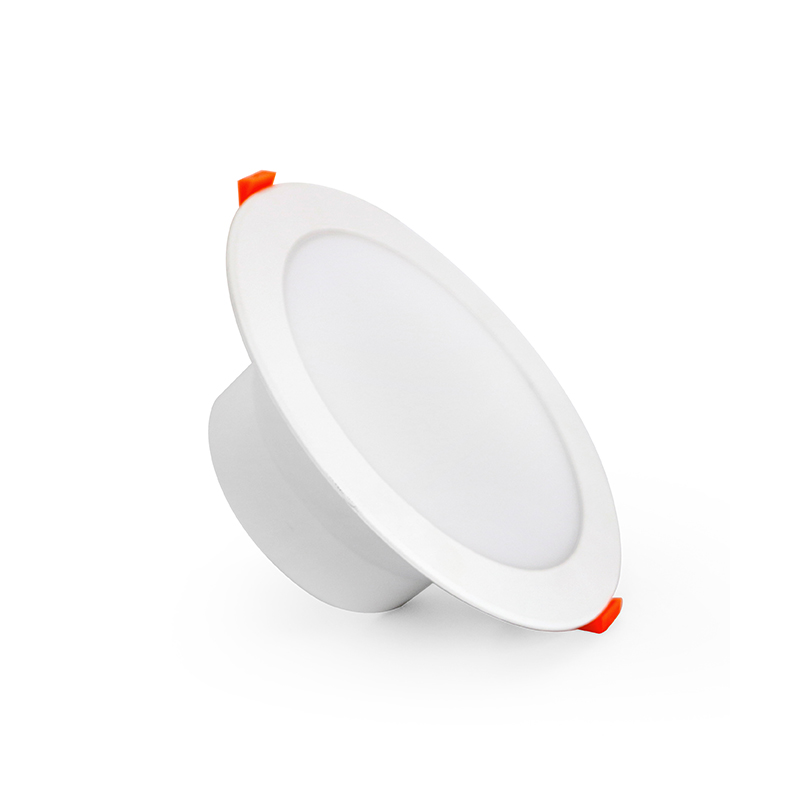

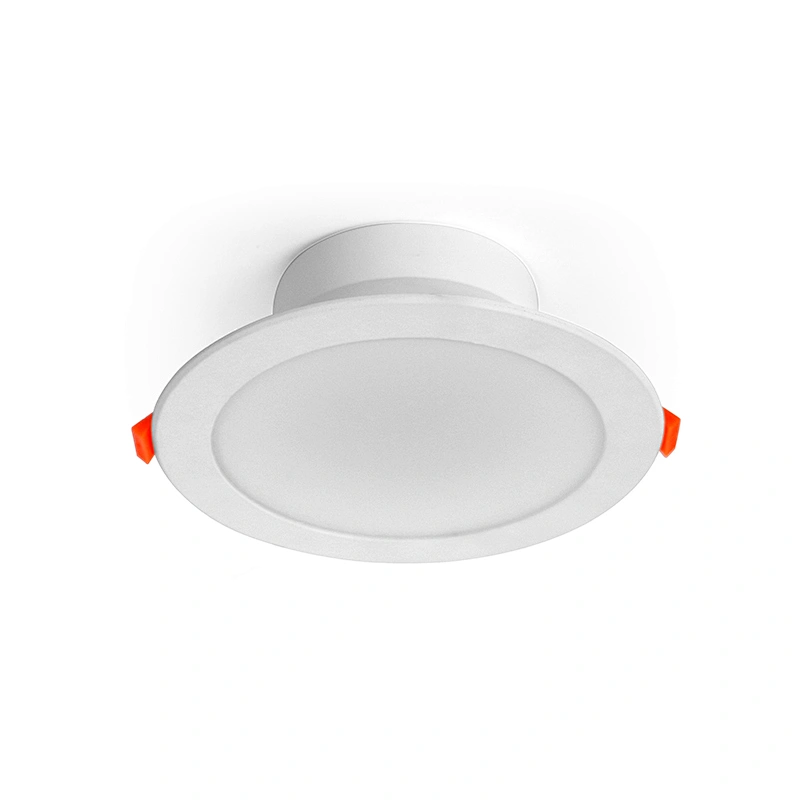

TUYA Smart Control Downlight
TUYA Smart Control Downlight
TUYA Smart Control Downlight
TUYA Smart Control Downlight
TUYA Smart Control Downlight
TUYA Smart Control Downlight
TUYA Smart Control Downlight

TUYA Smart Control Downlight

Model NO.
SCL132
Minimum order quantity:
1
TUYA smart control downlight
Quantity:

Product Features
High quality PBT housing, PC diffuser with even light output
DIP switch for CCT changeable
Excellent dimming function
IP44 from the front face
Flat trim
Overview
Product Range: LED downlight, recessed mounted
Application: Office,residential, retail, hospitality etc
Housing: High quality Aluminium with white coated
Light Source: LED SMD
Driver: Integral driver
Electrical Class: Class II
Mounting: Recessed Mounted
Warranty: 2 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 5W/9W/12W/18W/24W
Dimmension(D*H): Ø92*55MM/Ø115*60MM/Ø140*65MM/Ø190*70MM/Ø225*85MM
Lumen Output: 350LM/720LM/1080LM/1620LM/2160LM
Lumens Per Circuit Watt: 70~90lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: A+
LED Life (Hours): 20,000

Ideal for any residential or commercial interior space
Residential, offices, hospitality, general applications
