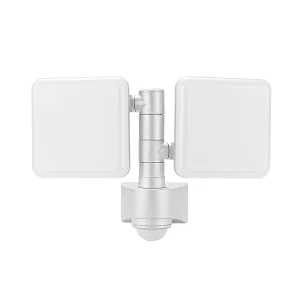

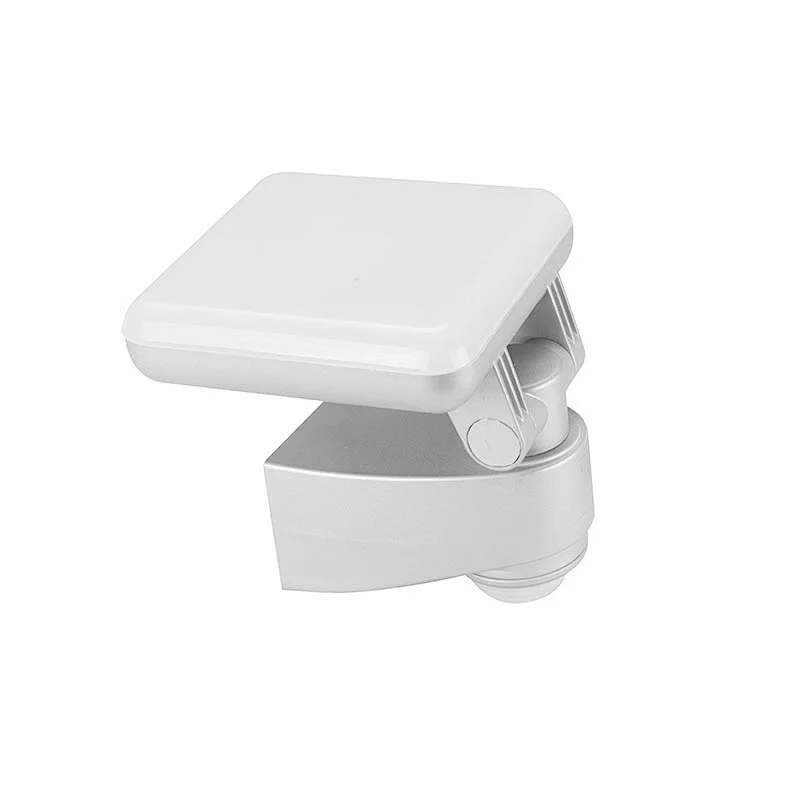

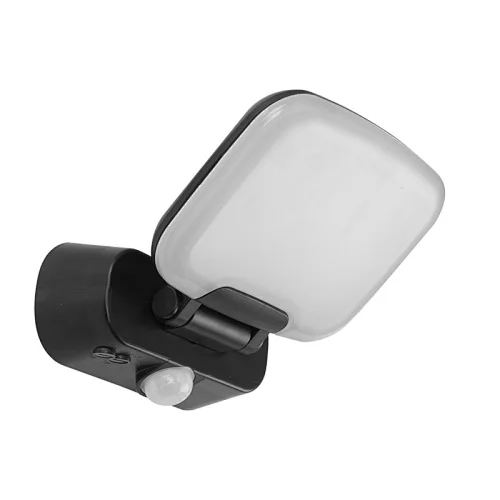

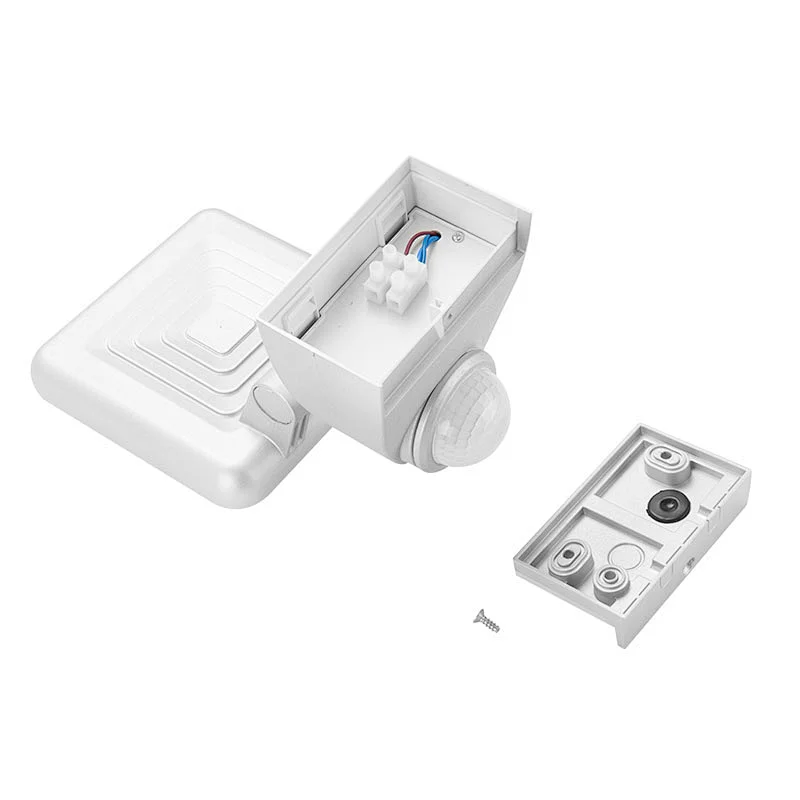

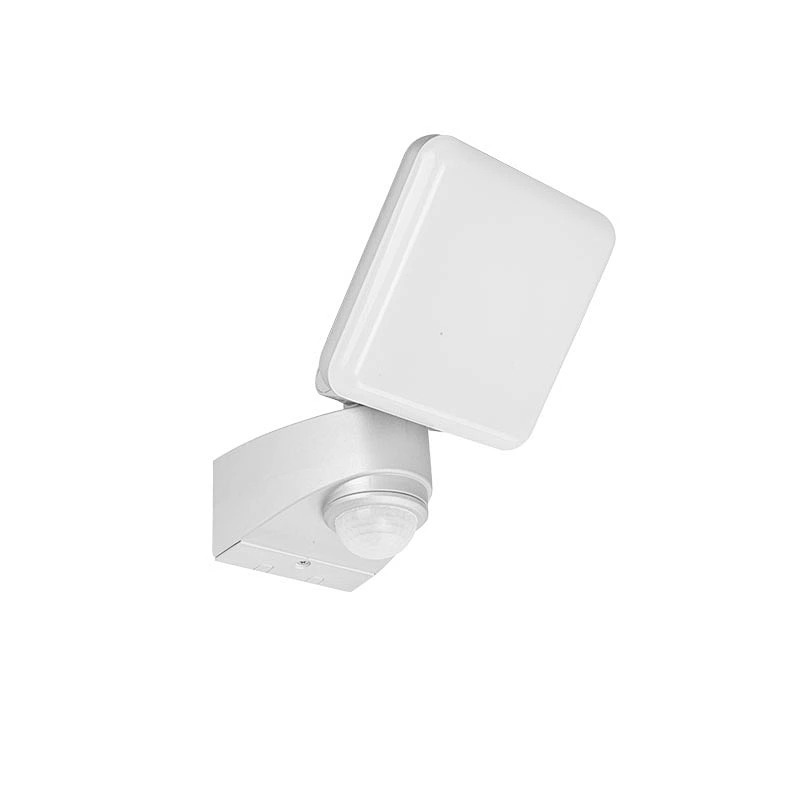

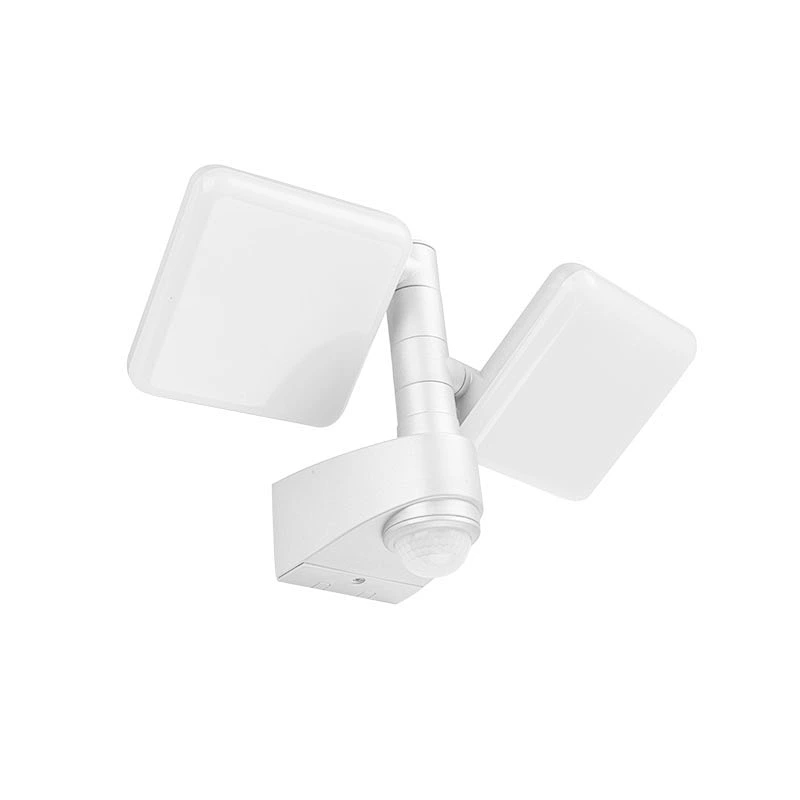

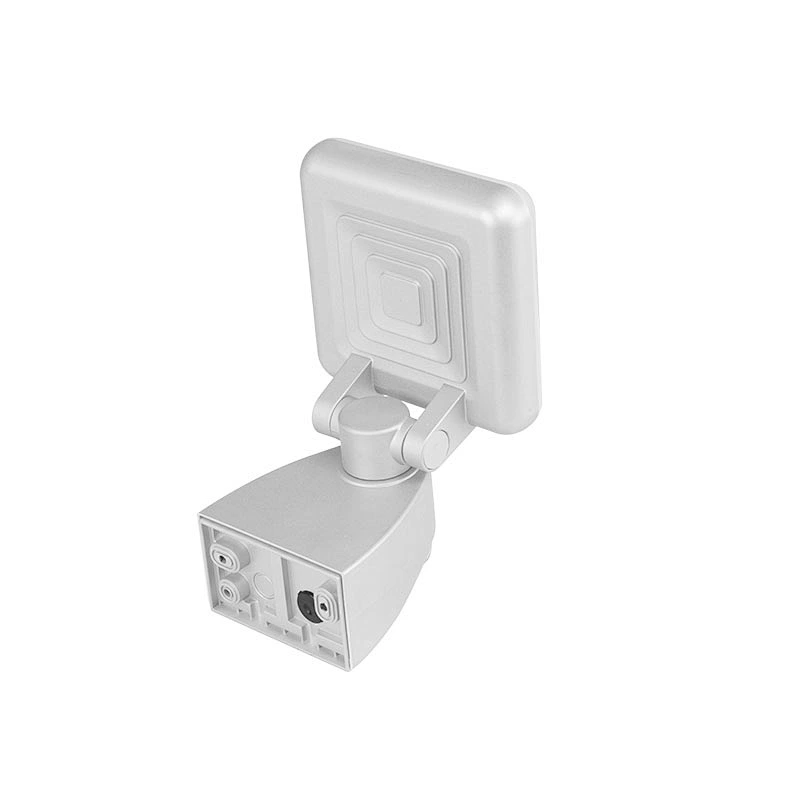

IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design
IP54 Sensor Light, Wide Beam Angle, Collapsible Design

IP54 Sensor Light, Wide Beam Angle, Collapsible Design

Model NO.
SSL125

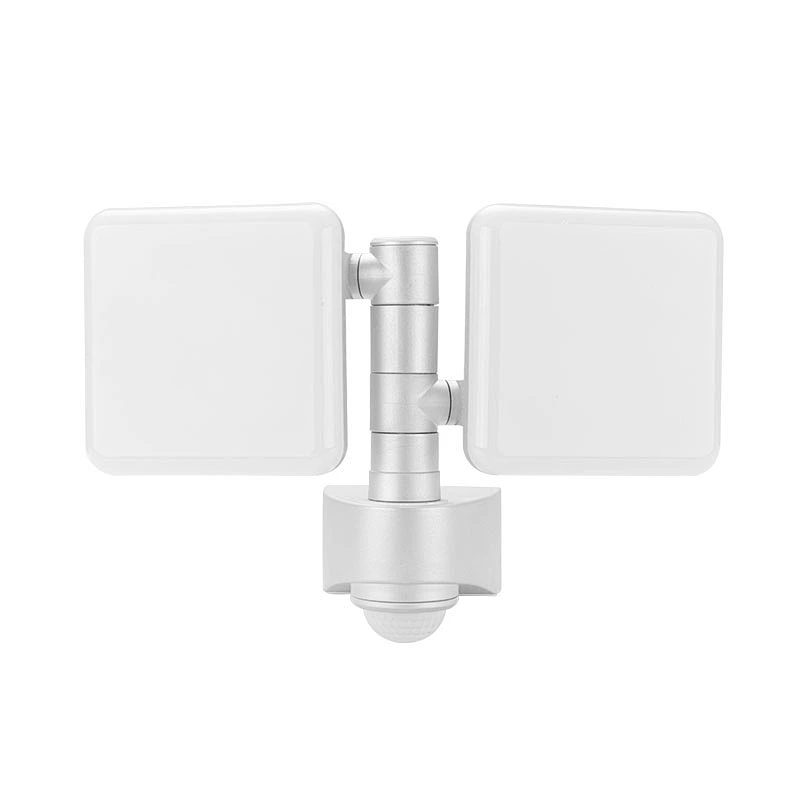

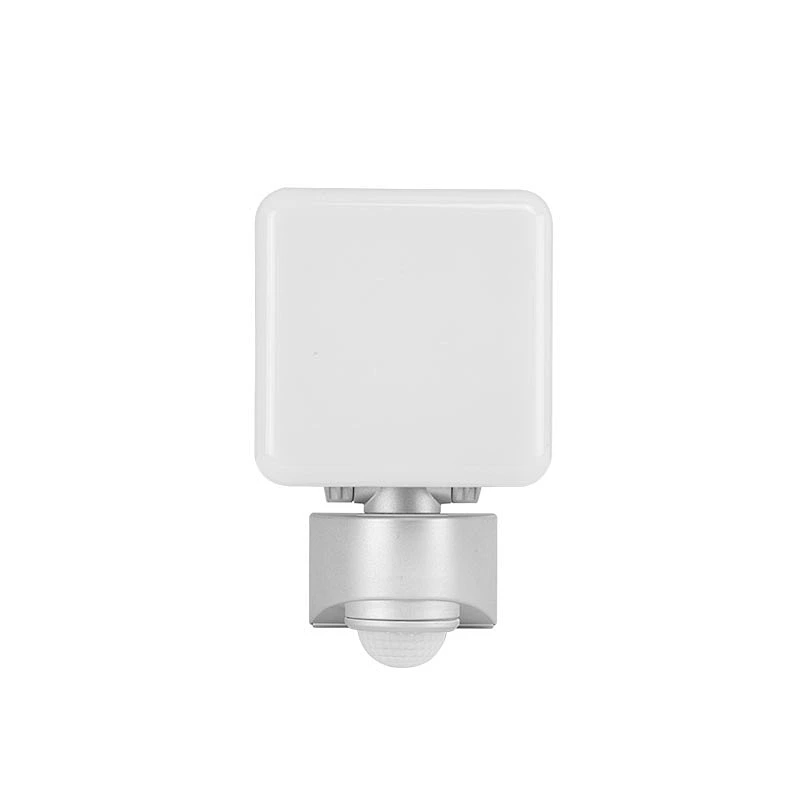

IP54 Sensor light, wide beam angle,collapsible design
Quantity:

The Wide Beam Angle Led with Collapsible Design is more and more universal and general recently. This IP54 Sensor Light Wide Beam Angle Led is different from other Led lights. With its Robust polycarbonate body and Wide Beam Angle, you can get enough light that you need.

There are 5 key factors that influense Beam Angle. If there is a standard beam angle, it may be 40 degrees. Beam angle refers to the angle between two directions with luminosity equal to 50% of the maximum luminosity on a plane perpendicular to the centerline of the beam.

The beam angle reaction on the illuminated wall is the spot size and light intensity. If the same light source is applied to reflectors with different angles, the larger the beam angle, the greater the central light intensity and the smaller the spot.

The same principle applies to indirect lighting. The smaller the beam angle, the greater the ambient light intensity and the worse the scattering effect.
Of course, you should consider heat dissipation. If the beam angle is very small, such as 5 degrees, and it is too close to the wall, it will certainly damage the lamps and the wall.
Product Features

  • Robust polycarbonate body

  • PIR sensor with:

- Adjustable detection range from 1 to 8 m using sensitivity knob

- Adjustable time delay from 10S to 10MIN

- Adjustable lux activation from 3lux to 2000lux(adjustable)

- Up to 180° detection angle

  • 30,000 hours lifespan

  • 360° horizontally, 180° vertically rotatable

  • IP54 rating

  • 2 years warranty

Overview

Product Range: LED Sensor light, IP54 rated, suitable for exterior lighting.

Application:Residential, retail, showroom and decorative lighting applications.

Housing: Robust polycarbonate

Light Source: LED SMD

Electrical Class: Class II

Mounting:Surface Mounted

Warranty: 2 Years

Certificates:CE/EMC/SAA/ROHS

PIR sensor with:

- Adjustable detection range from 1 to 8 m using sensitivity knob

- Adjustable time delay from 10S to 10MIN

- Adjustable lux activation from 3lux to 2000lux(adjustable)

- Up to 180° detection angle

Performance

Voltage Rating(V):220-240V

Operating Frequency (Hz): 50/60Hz

Wattage Rating: 10W/20W

Dimmension(D*H):152*140*230MM; 134*330*230MM

Lumen Output: 800LM/1600LM

Lumens Per Circuit Watt: 80lm/W

Correlated Color Temperature:4000K/5000K/6500K

Color Rendering Index: >80

SDCM:<6

Beam Angle:110°

IP Rating: IP54

Energy Rating:A++

LED Life (Hours): 30,000
