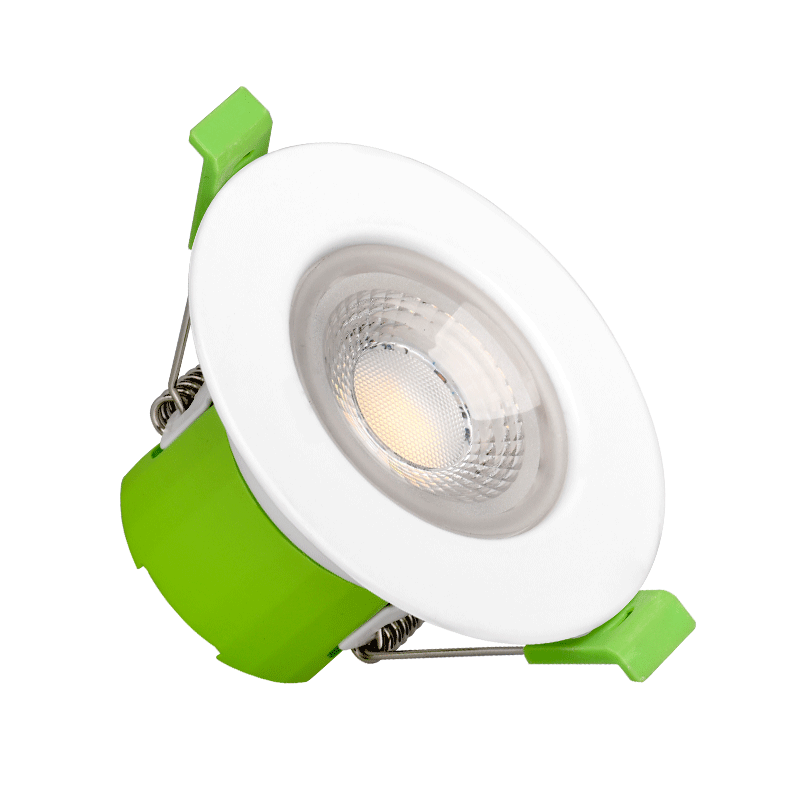

Fire-rated downlight
Fire-rated downlight
Fire-rated downlight
Fire-rated downlight
Fire-rated downlight
Fire-rated downlight
Fire-rated downlight

Fire-rated downlight

Model NO.
SCL331
IP65 6W 55mm cut out Fire-rated downlight CCT3 selectable and triac dimmable with 30, 60 and 90 minutes
Quantity:
Product Features
IP65 Firex-rated downlight
CCT 3 selectable by DIP switch
Triac dimmable
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of building regulations
Built-in driver

Overview
Product Range: LED downlight, recessed, Fire-rated
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: Steel+PC base, PC diffuser
Light Source: LED SMD
Driver: Built-in driver
Flex & Plug: NA
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 3 Years
Certificates: CE/EMC/UKCA/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 6W
Dimmension(D*H): Ø86*50MM
Cut-out Size: 55MM
Lumen Output: 600LM
Lumens Per Circuit Watt: 100lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP65
IC Rating: NA
LED Life (Hours): 30,000h
