Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight
Dimmable downlight

Dimmable downlight

Model NO.
SCL343

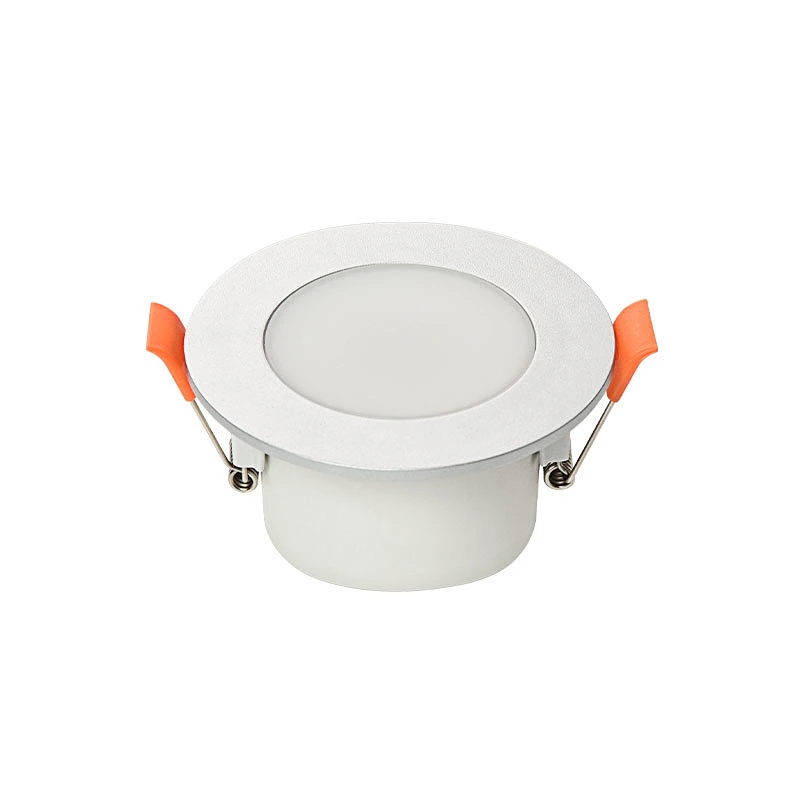

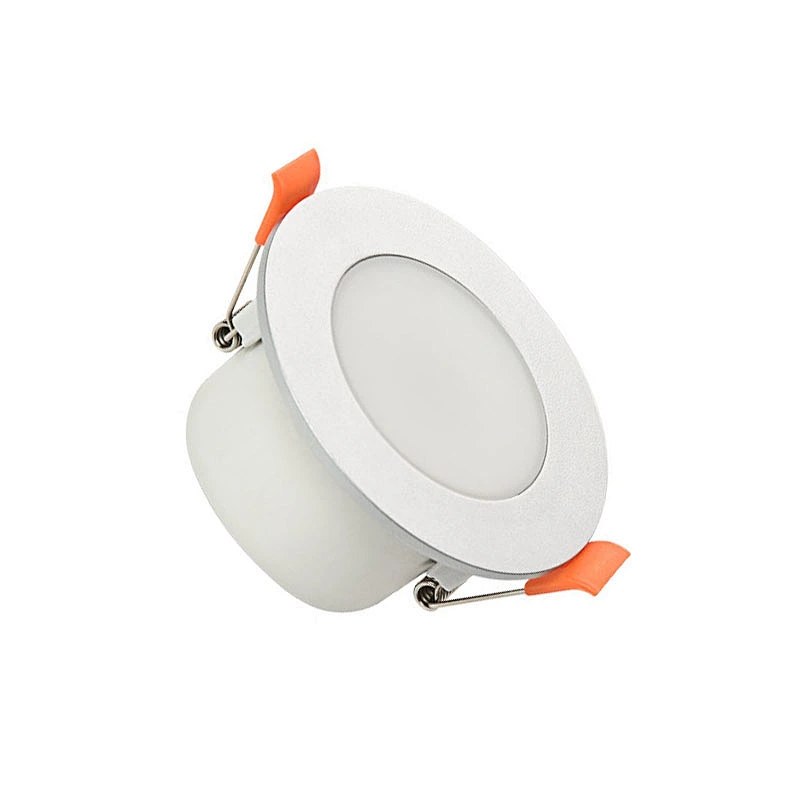

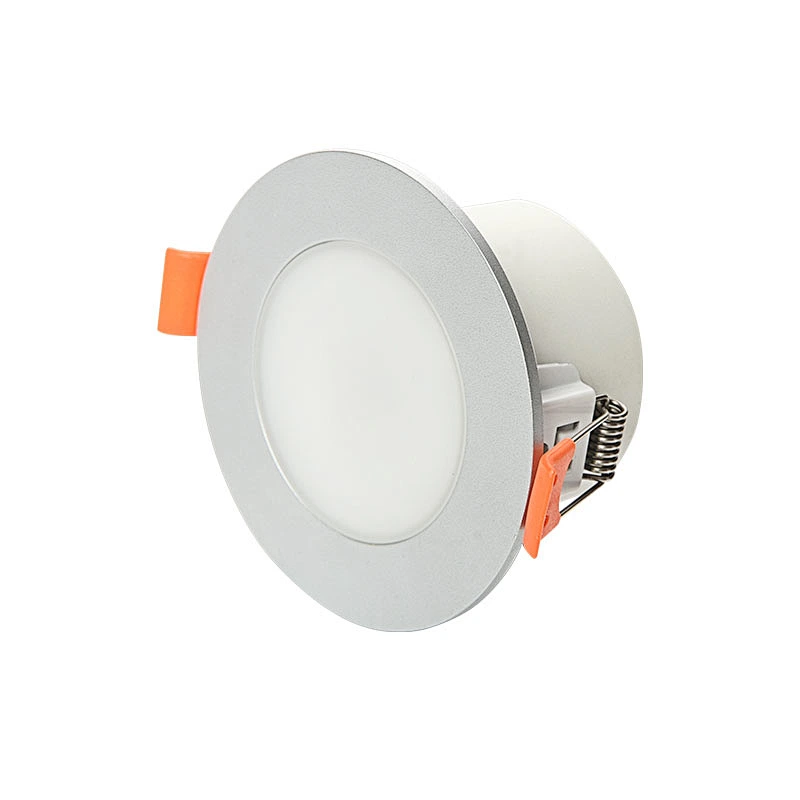

IP65 4.5W 75mm cut out CCT switchable with 3-step dimmable, built-in loop in and loop out terminals, bezel available
Quantity:
Product Features
IP65  recessed downlight
CCT 3 selectable by DIP switch
3-step dimmable

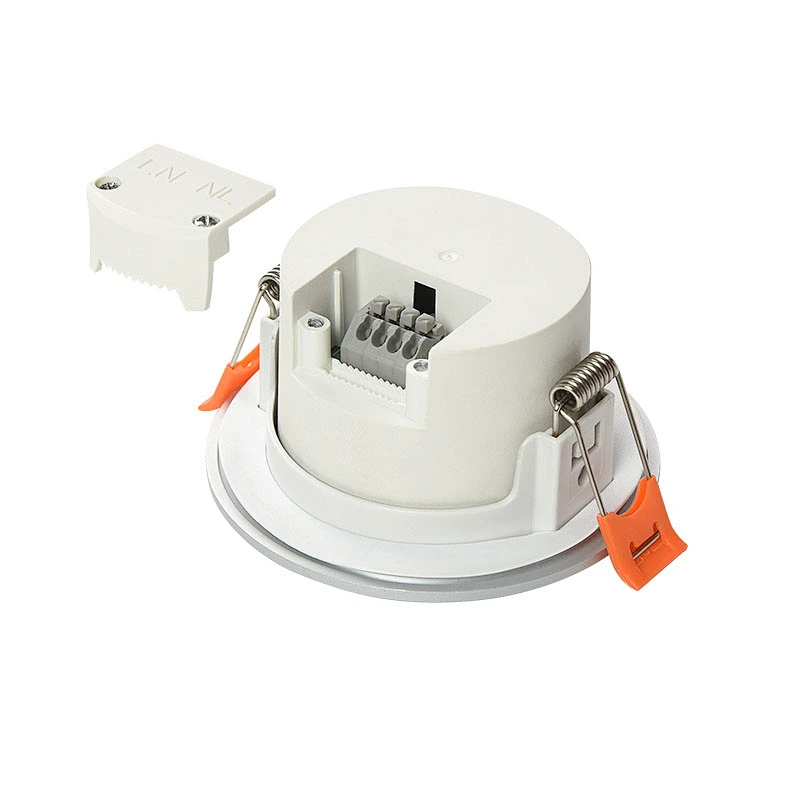

Built-in loop in and loop out terminals
Interchangable bezel available
Supplied with 2 bezels as standard -matt white and matt black bezels
Built-in driver

Overview
Product Range: LED downlight, recessed
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: PA base+PC diffuser
Light Source: LED SMD
Driver: Built-in driver
Flex & Plug: NA
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 3Years
Certificates: CE/EMC/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 4.5W
Dimmension(D*H): Ø88*45MM
Cut-out Size: 75MM
Lumen Output: 405LM
Lumens Per Circuit Watt: 90LM/W
Correlated Color Temperature: CCT3 selectable 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP65
LED Life (Hours): 30,000h

Send Message

*
*
* clear input
* clear input
* clear input

Related Products

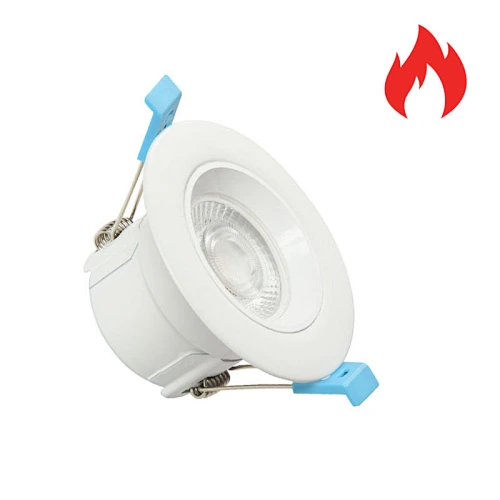

Fire-rated downlight
