Surface mounted downlight
Surface mounted downlight
Surface mounted downlight
Surface mounted downlight
Surface mounted downlight
Surface mounted downlight
Surface mounted downlight

Surface mounted downlight

Model NO.
SCL348

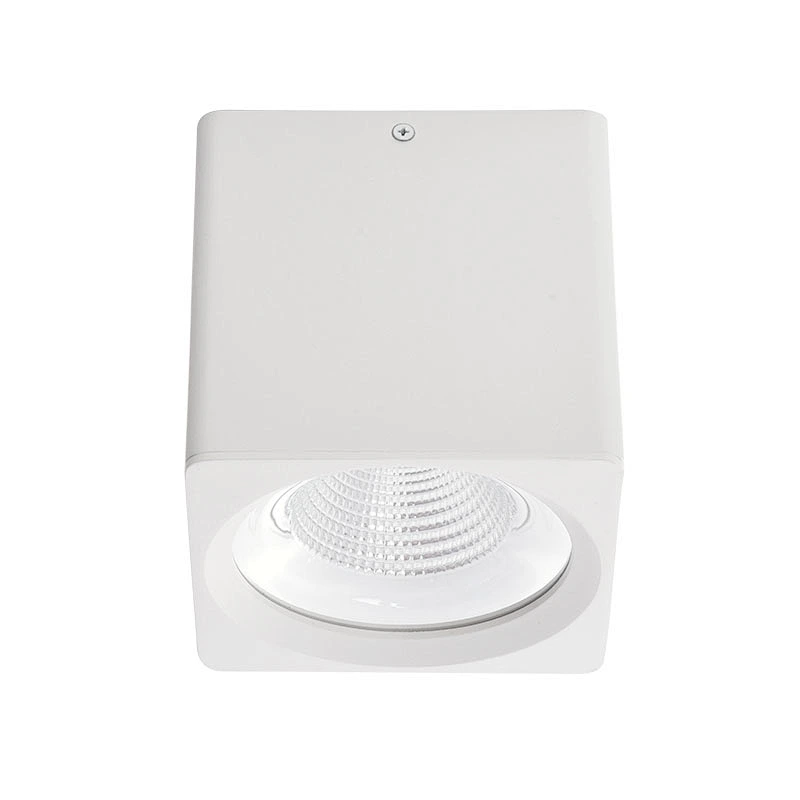

Surface mount square downlight, CCT3 selectable and Triac dimmable with flicker free remote driver
Quantity:
Product Features
Surface  mount square downlight

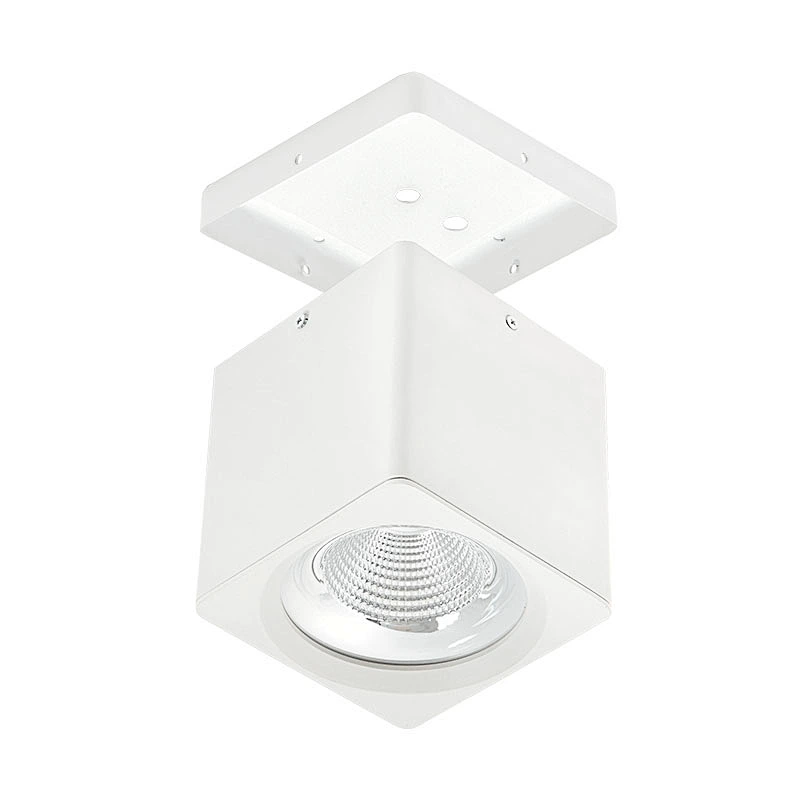

Quick release installtion base
CCT3 selectable
Triac dimmable
Flicker free remote driver

Overview
Product Range: LED downlight, surface mount
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: Aluminum base+PC diffuser

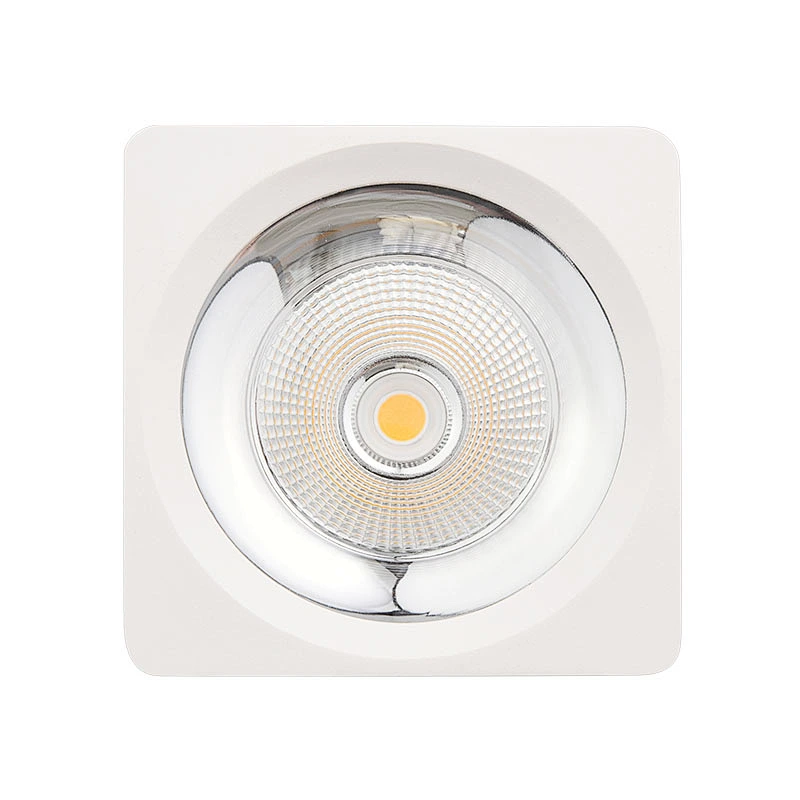

Light Source: COB LED
Driver: Remote driver
Flex & Plug: NA
Electrical Class: Class II
Optional Function: NA
Mounting: Surface mount
Warranty: 3Years
Certificates: CE/EMC/SAA/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 20-40W
Dimmension(D*H): From 110*110*112MM to 130*130*135MM
Lumen Output: 1600-3200LM
Lumens Per Circuit Watt: 95LM/W
Correlated Color Temperature: CCT3 selectable 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP20
LED Life (Hours): 30,000h
