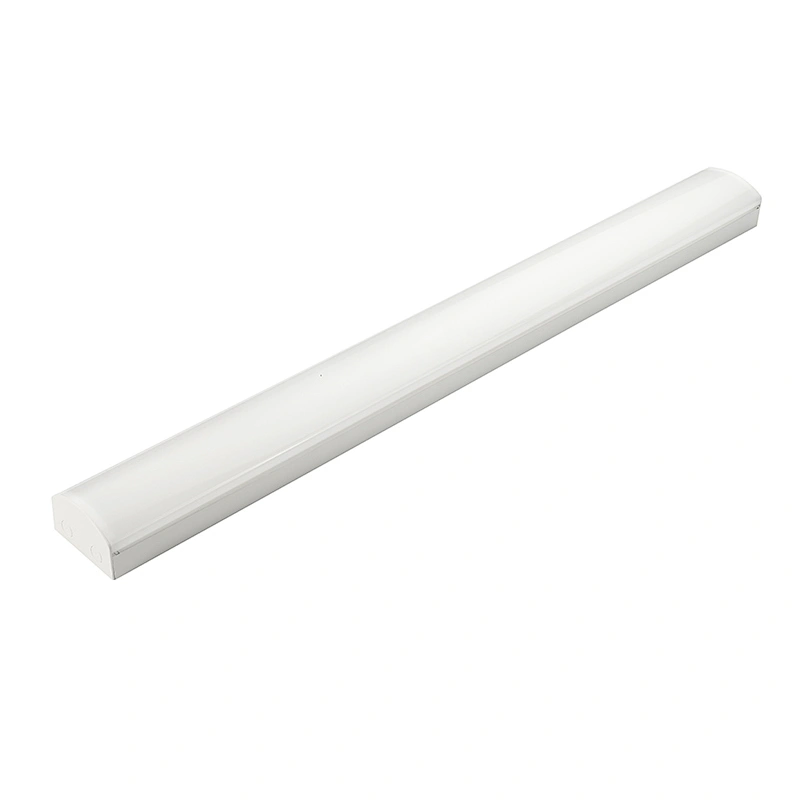

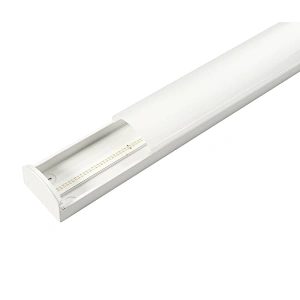

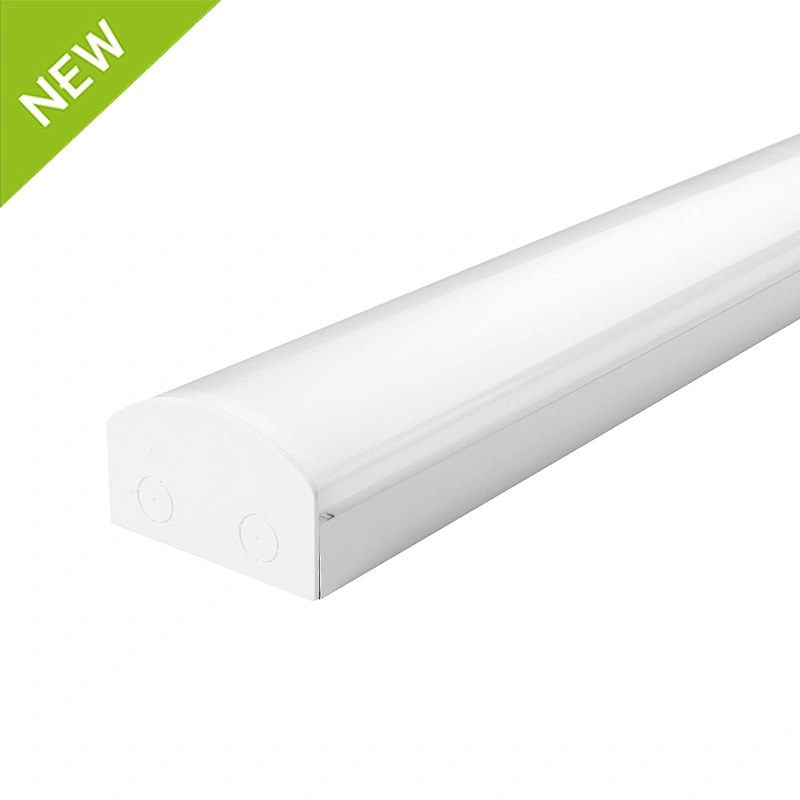

IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting
IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting

IP20 Batten, Wide design, High Efficiency Lighting, 150lm/W, BESA mounting

Model NO.
SOF117
Delivery
FOB
IP20 Batten, Wide design
Quantity:
Product Features
· 120mm/170mm width available
· Conduit entry points at both ends
· Suitable for BESA mounting
· Smooth even light distribution
· Multiple variations available
Overview
Product Range: IP20 Batten,Linear lighting
Application: Retail, offices, schools, corridors, workshops
Housing: Steel sheet with high quality Matt White powder coated
Diffuser: Opal polycarbonate diffuser
Light Source: LED SMD
Driver: Brand options of Tridonic,Philips,Osram,Eaglerise,Boke,Lifud,ect.
Electrical Class: Class I, requires earth
Mounting: Surface Mounted/Suspending

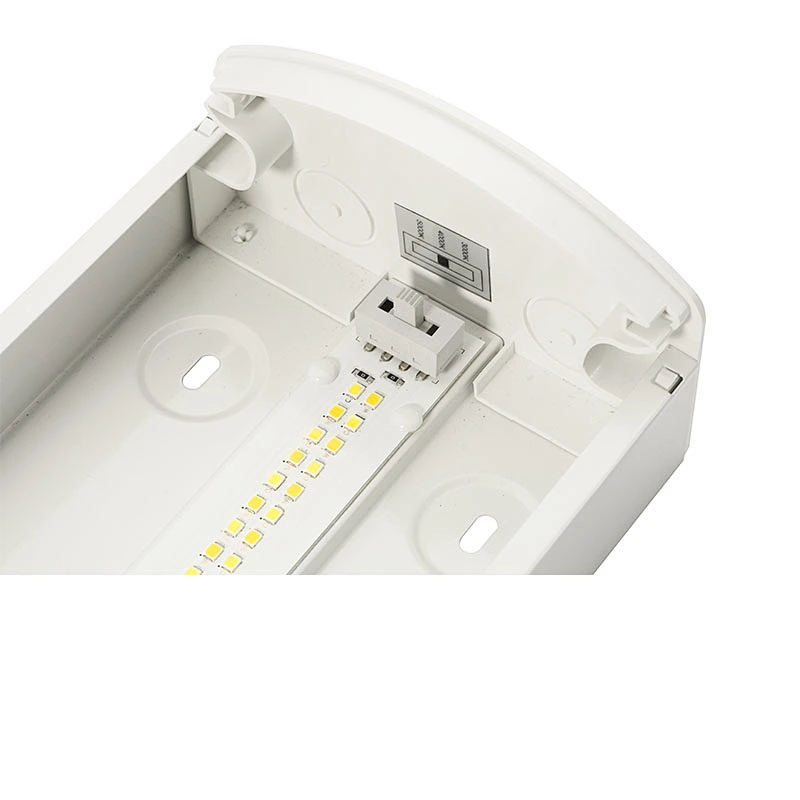

Optional Function: CCT selectable, Microwave sensor, Emergency, Power selectable, Triac dimmable, ect.
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 20W/40W/60W; 40W/60W/75W
Dimension(L*W*H): 620/1220/1520*120*72MM; 1200/1500/1800*170*79MM
Lumen Output: 2000LM/4000LM/6000LM; 4800LM/7200LM/9000LM
Lumens Per Circuit Watt: 100-120lm/W, up to 150lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
Power Factor: >0.9
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: E
LED Life (Hours): 50,000 Hours
education, commercial and light industrial applications
