IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps

IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps

Model NO.
SOF129A/B
Delivery
FOB
IP20 Batten, Quick Installation, 150lm/W, Integrated diffuser and LED tray, Rotatable end caps
Quantity:
Product Features

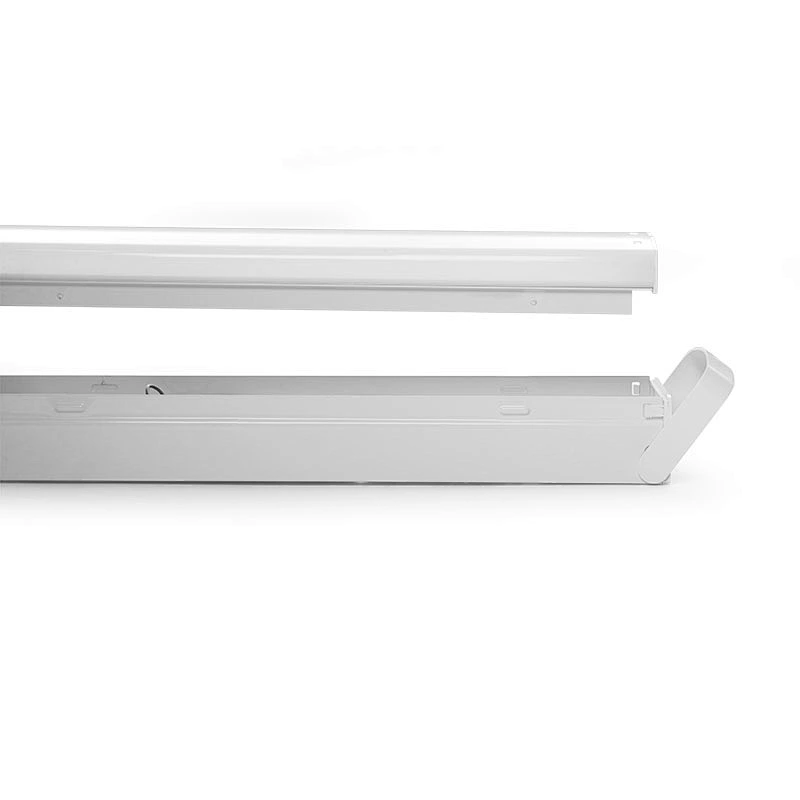

· Quick release design
· Double security structure without screw

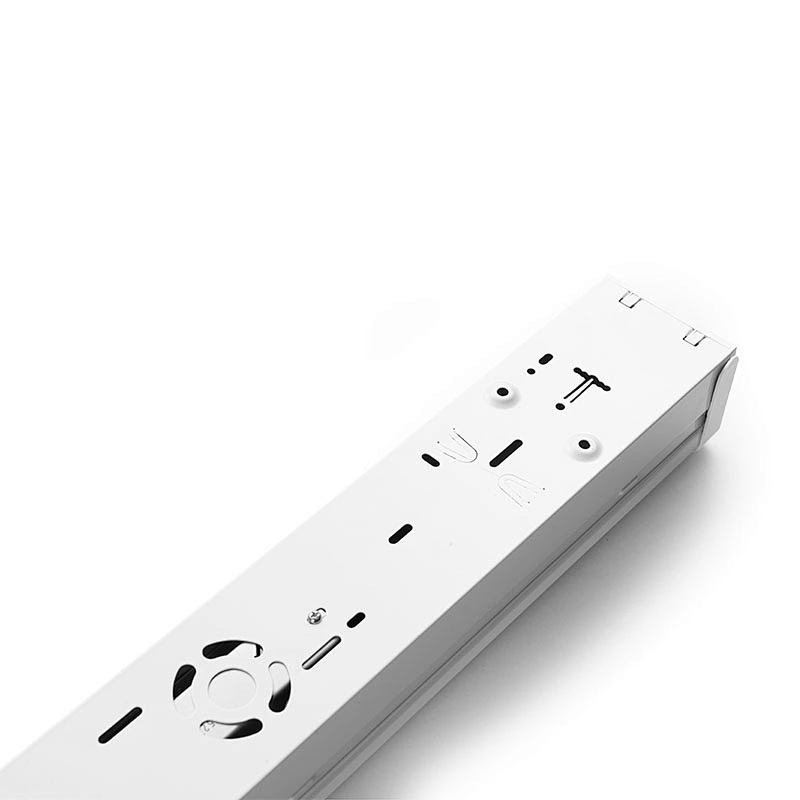

· Conduit entry points at both ends
· Suitable for BESA mounting
· Multiple variations available
· High lumen efficiency, up to 150lm/W
Overview
Product Range: IP20 Batten,Linear lighting
Application: Retail, offices, schools, corridors, workshops
Housing: Steel sheet with high quality Matt White powder coated
Diffuser: High transparency opal polycarbonate diffuser
Light Source: LED SMD
Driver: Brand options of Tridonic,Philips,Osram,Eaglerise,Boke,Lifud,ect.
Electrical Class: Class I, requires earth
Mounting: Surface Mounted/Suspending
Optional Function: CCT changeable, Microwave sensor, Emergency, Dual power selectable, ect.
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 20W/40W/60W/75W/80W
Dimension(L*W*H): 620/1200/1500/1800*84*77MM; 620/1200/1500/1800*65*65MM
Lumen Output: 2400LM/4800LM/7200LM/9000LM/9600LM
Lumens Per Circuit Watt: 120lm/W, up to 130lm/W
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
Power Factor: >0.9
SDCM:<6
Beam Angle: 120°
IP Rating: IP20
Energy Rating: E
LED Life (Hours): 50,000 Hours
