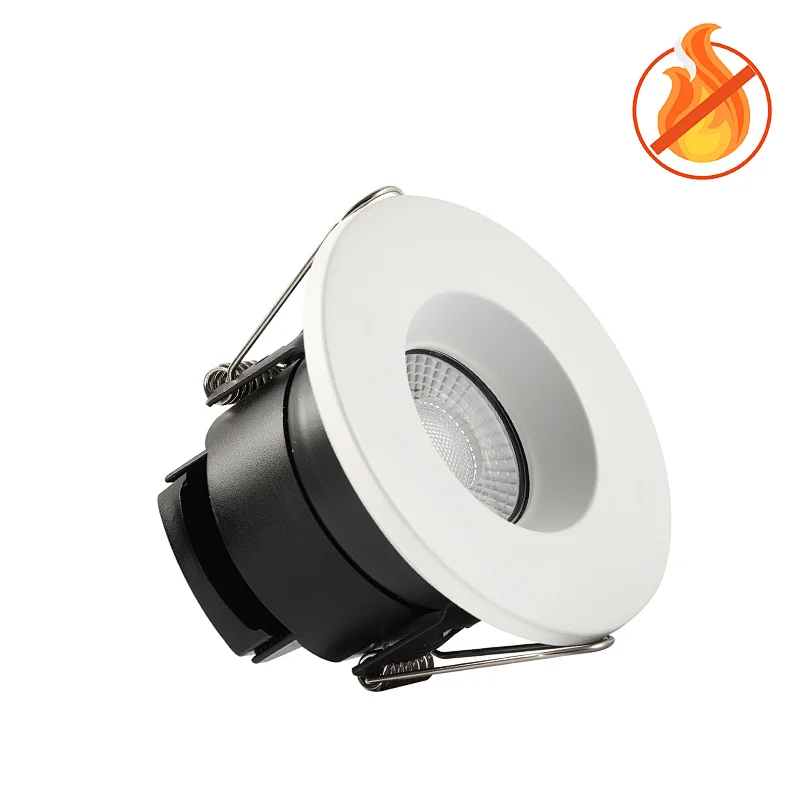

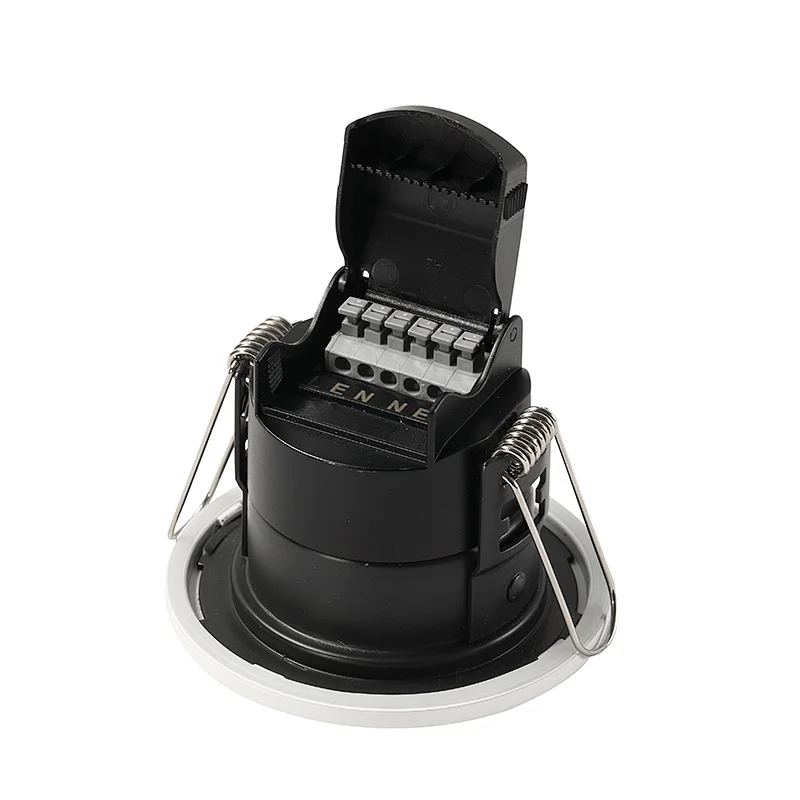

Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes
Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes

Ip65 6w 68mm Cut Out Fire-rated Downlight Cct Switchable And Dimmable With 30, 60 And 90 Minutes

Model NO.
SCL306
Minimum order quantity:
1
IP65 6W 68mm cut out Fire-rated downlight CCT switchable and dimmable with 30, 60 and 90 minutes
Quantity:

Product Features
IP65 Fire-rated downlight
CCT switchable
Smooth dimming function
Complies with part C & E of the Building regulations
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of building regulations
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
Supplied with 4 bezels as standard -matt white,chrome,satin chrome,and matt black bezels
Overview
Product Range: LED downlight, recessed, Fire-rated
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: White powder coating process to steel housing
Light Source: LED SMD
Driver: External driver
Flex & Plug: NA
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 3 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 6W
Dimmension(D*H): Ø88*64MM
Cut-out Size: 68MM
Lumen Output: 480LM
Lumens Per Circuit Watt: 80lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP65
IC Rating: NA
Energy Rating: A+
LED Life (Hours): 25,000

offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms

Send Message

*
*
* clear input
* clear input
* clear input

Related Products

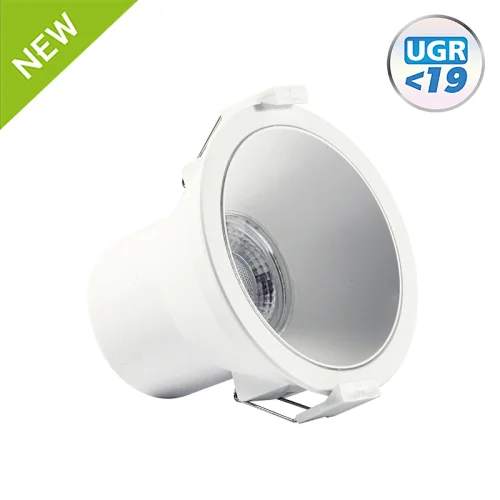

8w, Dimmable Downlight With Reflector, Ugr<19, Ic-4, Ip44 Downlights, Cct3, Cct4, With Flex And Plug
