Model NO.
SCL286

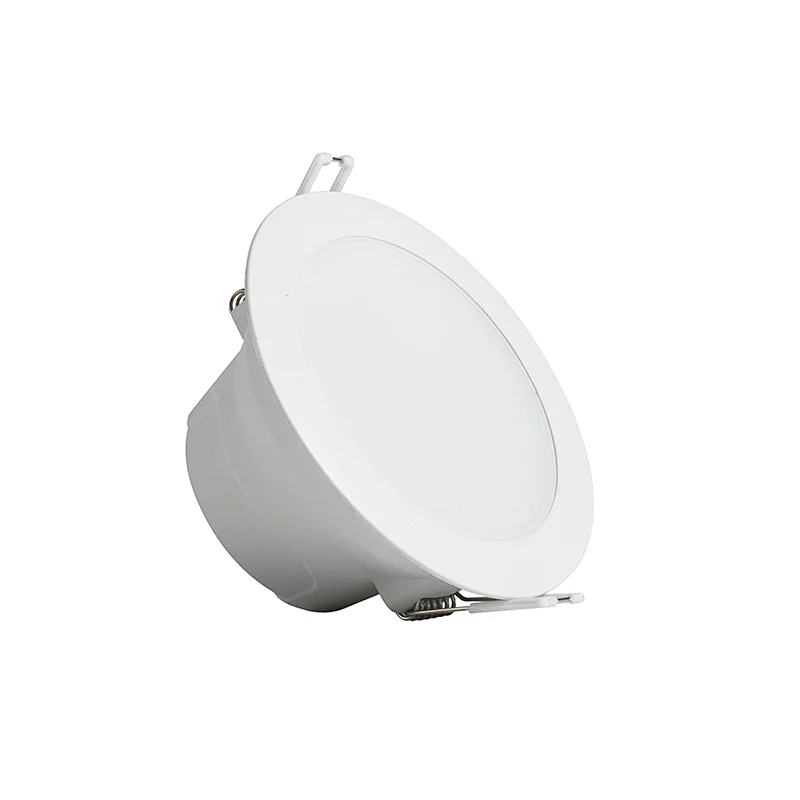

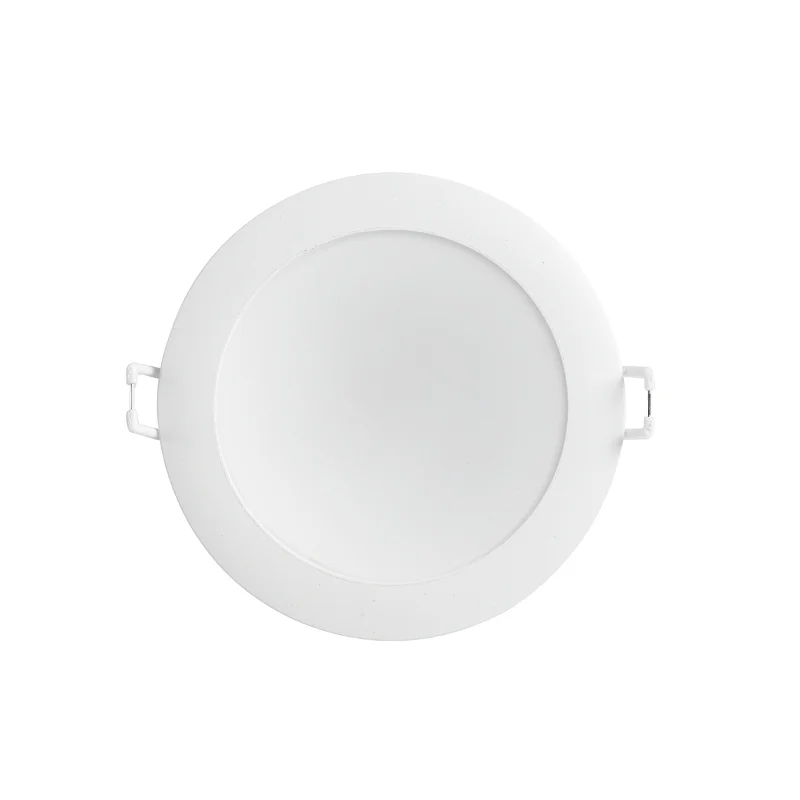

6W,8W,CCT3 Dimmable downlight IC-4 IP44 72mm & 90mm cut out,with flex and plug
Quantity:

Product Features
High quality PBT housing, PC diffuser with even light output
DIP switch for CCT changeable
Excellent dimming function
IC-4
IP44 from the front face
Flat trim
Overview
Product Range: LED downlight, recessed
Application: Office,residential, retail, hospitality etc
Housing: High quality PBT material with white coated
Light Source: LED SMD
Driver: Integral built-in driver
Flex & Plug: 0.6M 2*0.75mm2 SAA flex and plug
Electrical Class: Class II
Optional Function: Dimmable, CCT changeable
Mounting: Recessed
Warranty: 2 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 8W; 6W
Dimmension(D*H): Ø110*60MM; Φ90*54MM
Cut-out Size: 90MM; 70MM
Lumen Output: 720LM;540LM
Lumens Per Circuit Watt: 90lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6Product Features
High quality PBT housing, PC diffuser with even light output
DIP switch for CCT changeable
Excellent dimming function
IC-4
IP44 from the front face
Flat trim
Overview
Product Range: LED downlight, recessed
Application: Office,residential, retail, hospitality etc
Housing: High quality PBT material with white coated
Light Source: LED SMD
Driver: Integral built-in driver
Flex & Plug: 0.6M 2*0.75mm2 SAA flex and plug
Electrical Class: Class II
Optional Function: Dimmable, CCT changeable
Mounting: Recessed
Warranty: 2 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 8W; 6W
Dimmension(D*H): Ø110*60MM; Φ90*54MM
Cut-out Size: 90MM; 70MM
Lumen Output: 720LM;540LM
Lumens Per Circuit Watt: 90lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
Beam Angle: 120°
IP Rating: IP44
IC Rating: IC-4
Energy Rating: A+
LED Life (Hours): 25,000

Ideal for any residential or commercial interior space
Residential, offices, hospitality, general applications
