Model NO.
SCL310

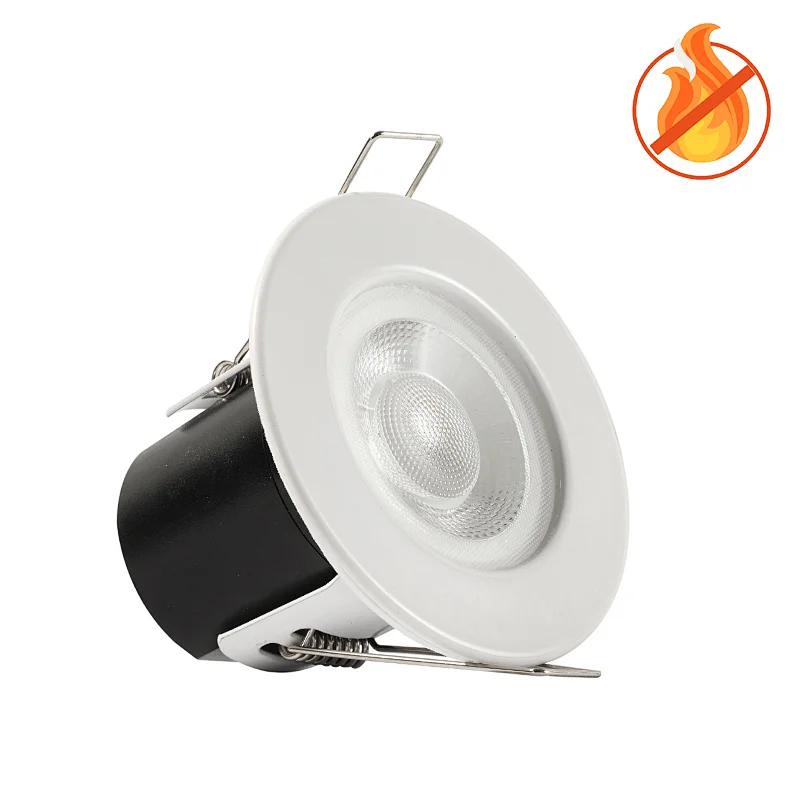

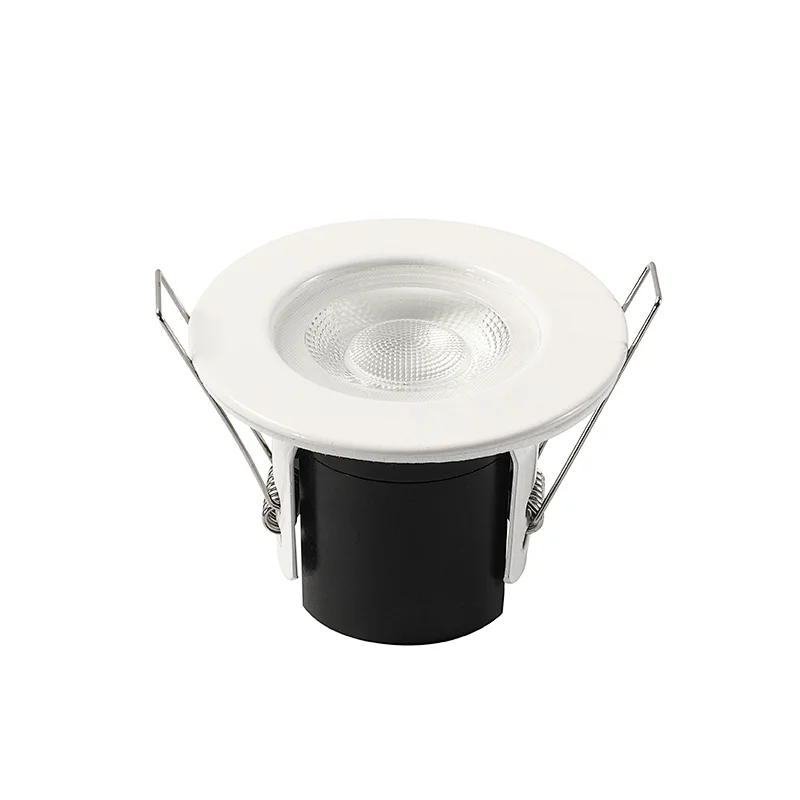

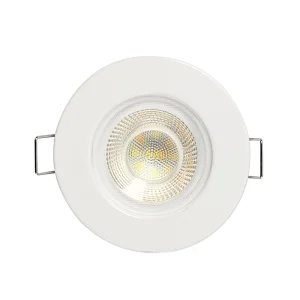

5W DOB solution Fire-rated downlight CCT switchable and dimmable with 30, 60 and 90 minutes
Quantity:

Product Features
DOB solution Fire-rated downlight
CCT switchable and dimmable
Complies with part C & E of the Building regulations
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of building regulations
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
Remote driver
Loop in and out by push terminal
Supplied with 4 bezels as standard -matt white,chrome,satin chrome,and matt black bezels
Overview
Product Range: LED downlight, recessed, Fire-rated
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: White powder coating process to steel housing
Light Source: LED SMD
Driver: Remote driver
Flex & Plug: NA
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 5 Years
Certificates: CE/EMC/SAA/ROHS
Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 5W
Dimmension(D*H): Ø80*57MM
Cut-out Size: 60MM
Lumen Output: 450LM
Lumens Per Circuit Watt: 90lm/w
Correlated Color Temperature: 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP20
IC Rating: NA
Energy Rating: A+
LED Life (Hours): 45,000

offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
