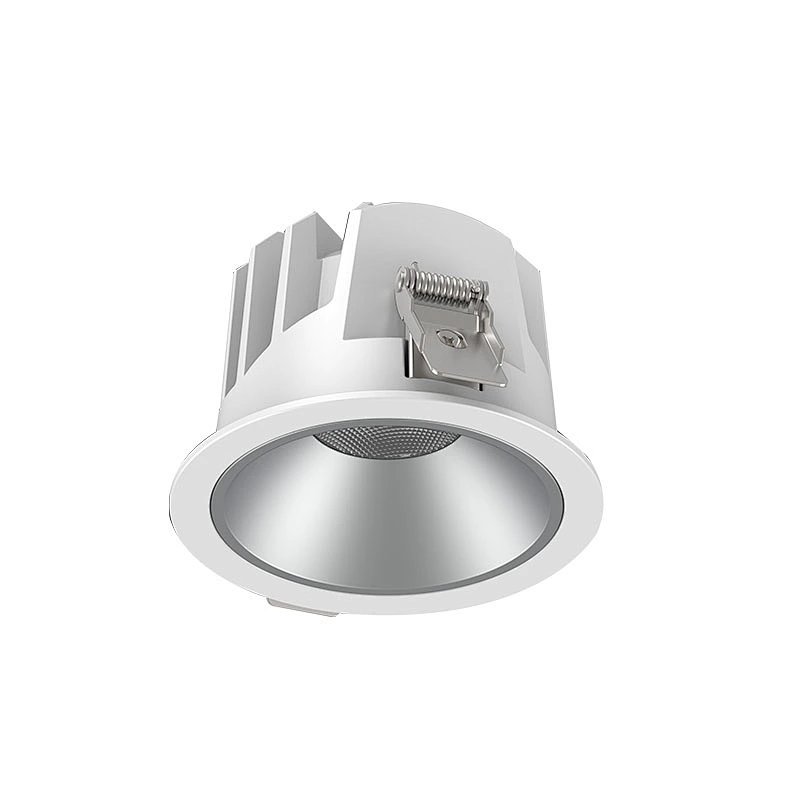

Die-casting aluminum downlight
Die-casting aluminum downlight
Die-casting aluminum downlight
Die-casting aluminum downlight
Die-casting aluminum downlight

Die-casting aluminum downlight

Model NO.
SCL317
Robust die-casting aluminum housing, 8-40W full ranges downlight with CCT3 selectable.
Triac dimmable, IC-4 rating with IP44 rated from front face
Quantity:
Product Features
Recessed downlight
Robust die-casting aluminum housing
IP44 rated from front face
CCT3  selectable
Triac dimmable
Flicker free remote driver

Overview
Product Range: LED downlight, recessed
Application: offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms
Housing: Aluminum base+PC diffuser
Light Source: COB LED
Driver: Remote driver
Flex & Plug: With 0.6M _x005f_x001e_ex & plug
Electrical Class: Class II
Optional Function: NA
Mounting: Recessed
Warranty: 3Years
Certificates: CE/EMC/SAA/ROHS

Performance
Voltage Rating(V): 220-240V
Operating Frequency (Hz): 50/60Hz
Wattage Rating: 10-35W
Dimmension(D*H): From Ø86*55MM to Ø155*86MM
Cut-out Size: 75-140MM
Lumen Output: 900-3150LM
Lumens Per Circuit Watt: 90LM/W
Correlated Color Temperature: CCT3 selectable 3000K/4000K/6500K
Color Rendering Index: >80
SDCM:<6
IP Rating: IP44
LED Life (Hours): 30,000h
